Hansen
Series ST Straight-Through - Plugs

Series ST Straight-Through - Plugs

Vendor: Hansen

Coupling Type: Quick Disconnects

Coupling Category:

Straight-Through Couplings

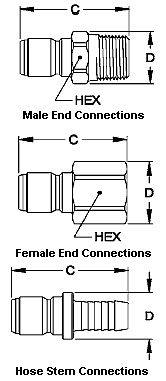

Male End Connections
Body Size
Part Number
Thread Size
Dimensions
Brass
Steel
Stainless
NPTF
BSPP
C
D
Hex
1/8
B1-T10
1-T10
LL1-T10
1/8-27
1.09
0.51
0.44
1/8
B1-T10BS
1/8-28
0.89
0.65
0.56
1/8
B1-T15
1-T15
1/4-18
1.25
0.65
0.56
1/4
B2-T15
2-T15
LL2-T15
1/4-18
1.61
0.65
0.56
1/4
HL2-T15*
1/4-18
1.61
0.65
0.56
1/4
B2-T15BS
2-T15BS
LL2-T15BS
1/4-19
1.35
0.87
0.75
3/8
B3-T20
3-T20
LL3-T20
3/8-18
1.69
0.79
0.69
3/8
HL3-T20*
3/8-18
1.69
0.79
0.69
3/8
B3-T20BS
3-T20BS
LL3-T20BS
3/8-19
1.50
1.01
0.88
1/2
B4-T25
4-T25
LL4-T25
1/2-14
2.03
1.01
0.88
1/2
B4-T25BS
4-T25BS
LL4-T25BS
1/2-14
1.77
1.15
1.00
3/4
B6-T30
6-T30
LL6-T30
3/4-14
2.25
1.23
1.06
3/4
B6-T30BS
LL6-T30BS
3/4-14
2.00
1.44
1.25
1
B8-T35
8-T35
LL8-T35
1-11 1/2
2.53
1.59
1.38
1
B8-T35BS
1/11-02
2.30
2.02
1.75
1-1/4
B10-T40
10-T40
LL10-T40
1 1/4-11 1/2
2.72
2.02
1.75
1-1/4
B10-T40BS
1 1/4-11
2.50
2.31
2.00
1-1/2
B12-T45
12-T45
1 1/2-11 1/2
3.31
2.60
2.25
1-1/2
B12-T45BS
1 1/2-11
3.06
2.60
2.25
2
B16-T50
16-T50
LL16-T50
2-11 1/2
3.50
3.18
2.75
2
LL16-T50BS
2-11
3.50
3.18
2.75
2-1/2
B20-T55
2 1/2-8
3.97
3.75
3.25
* High impulse heat treated 416 stainless steel
Female End Connections
Body
Size
Part Number
Thread Size
Dimensions
Brass
Steel
Stainless
NPTF
BSPP
C
D
Hex
1/8
B1-T11
1-T11
LL1-T11
1/8-27
1.00
0.58
0.50
1/8
B1-T11BS
LL1-T11BS
1/8-28
0.97
0.65
0.56
1/4
B2-T16
2-T16
LL2-T16
1/4-18
1.50
0.79
0.69
1/4
HL2-T16*
1/4-18
1.50
0.79
0.69
1/4
B2-T16BS
2-T16BS
LL2-T16BS
1/4-19
1.45
0.87
0.75
3/8
B3-T21
3-T21
LL3-T21
3/8-18
1.63
0.94
0.81
3/8
HL3-T21*
3/8-18
1.63
0.94
0.81
3/8
B3-T21BS
3-T21BS
LL3-T21BS
3/8-19
1.63
1.01
0.88
1/2
B4-T26
4-T26
LL4-T26
1/2-14
1.94
1.15
1.00
1/2
B4-T26BS
4-T26BS
LL4-T26BS
1/2-14
1.92
1.23
1.06
3/4
B6-T31
6-T31
LL6-T31
3/4-14
2.06
1.37
1.19
3/4
B6-T31BS
LL6-T31BS
3/4-14
2.01
1.52
1.31
1
B8-T36
8-T36
LL8-T36
1-11 1/2
2.21
1.80
1.56
1
B8-T36BS
8-T36BS
LL8-T36BS
1-11
2.23
1.80
1.56
1-1/4
B10-T41
10-T41
LL10-T41
1 1/4-11 1/2
2.34
2.31
2.00
1-1/4
B10-T41BS
1 1/4-11
2.44
2.31
2.00
1-1/2
B12-T46
12-T46
LL12-T46
1 1/2-11 1/2
2.88
2.60
2.25
1-1/2
B12-T46BS
1 1/2-11
2.88
2.60
2.25
2
B16-T51
16-T51
2-11 1/2
3.03
3.18
2.75
2
B16-T51BS
2-11
3.25
3.18
2.75
2-1/2
B20-T56
20-T56
2 1/2-8
3.37
3.75
3.25
* High impulse heat treated 416 stainless steel
hosetem Connections
Body
Size
Part.No.
Hose.I.D.
Dimensions
Brass
Steel
Stainless
C
D
1/8
B1-T12
LL1-T12
3/16"
1.28
0.44
1/8
B1-T17
LL1-T17
1/4"
1.28
0.44
1/4
B2-T17
2-T17
LL2-T17
1/4"
1.93
0.56
3/8
B3-T22
3-T22
LL3-T22
3/8"
2.09
0.69
1/2
B4-T27
4-T27
LL4-T27
1/2"
2.17
0.88
3/4
B6-T32
6-T32
LL6-T32
3/4"
3.17
1.19
1
B8-T37
8-T37
1"
3.28
1.50

Any plug will connect with any socket in the same series (same body size)
All dimensions in inches.
