Dixon Air Fittings
Dixon Dix-Lock Quick Acting Couplings
Vendor: Dixon Air Fittings
Coupling Type: Air & Multipurpose Couplings
Description:
Hose Ends - Male/Female NPT Ends - Hose Shanks - Male NPT - Gaskets - Converters - Caps
Coupling Category:
Air Fittings
- Dix-Lock is rated to 300 PSI at ambient temperature (70°F)

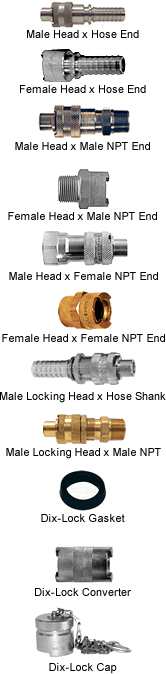

Male Head x Hose End
| Body Size |
Hose Shank Size |
Material | Part # |
| 3/8" | 1/2" | plated steel | QM1 |
| 1/2" | 3/8" | plated steel | QM2 |
| 1/2" | 1/2" | plated steel | QM3 |
| 1/2" | 3/4" | plated steel | QM4 |
| 1/2" | 1" | plated steel | QM5 |
| 1/2" | 3/8" | brass | QB2 |
| 1/2" | 1/2" | brass | QB3 |
| 1/2" | 3/4" | brass | QB4 |
| 1/2" | 1" | brass | QB5 |
| 1/2" | 3/4" | 303 stainless | QSS4 |
Female Head x Hose End
| Body Size |
Hose Shank Size |
Material | Part # |
| 3/8" | 1/2" | plated steel | |
| QM20 | |||
| 1/2" | 3/8" | plated steel | QM21 |
| 1/2" | 1/2" | plated steel | QM22 |
| 1/2" | 3/4" | plated steel | QM23 |
| 1/2" | 1" | plated steel | QM25 |
| 1/2" | 3/8" | brass | QB21 |
| 1/2" | 1/2" | brass | QB22 |
| 1/2" | 3/4" | brass | QB23 |
| 1/2" | 1" | brass | QB25 |
| 1/2" | 3/4" | 303 stainless | QSS23 |
Male Head x Male NPT End
| Body Size |
NPT Thread Size |
Material | Part # |
| 3/8" | 1/2" | plated steel | QM40 |
| 1/2" | 3/8" | plated steel | QM41 |
| 1/2" | 1/2" | plated steel | QM42 |
| 1/2" | 3/4" | plated steel | QM43 |
| 1/2" | 1" | plated steel | QM45 |
| 1/2" | 3/8" | brass | QB41 |
| 1/2" | 1/2" | brass | QB42 |
| 1/2" | 3/4" | brass | QB43 |
| 1/2" | 1" | brass | QB45 |
| 1/2" | 3/4" | 303 stainless | QSS43 |
Female Head x Male NPT End
| Body Size |
NPT Thread Size |
Material | Part # |
| 3/8" | 1/2" | plated steel | QM60 |
| 1/2" | 3/8" | plated steel | QM61 |
| 1/2" | 1/2" | plated steel | QM62 |
| 1/2" | 3/4" | plated steel | QM63 |
| 1/2" | 1" | plated steel | QM65 |
| 1/2" | 3/8" | brass | QB61 |
| 1/2" | 1/2" | brass | QB62 |
| 1/2" | 3/4" | brass | QB63 |
| 1/2" | 1" | brass | QB65 |
| 1/2" | 3/4" | 303 stainless | QSS63 |
Male Head x Female NPT End
| Body Size |
NPT Thread Size |
Material | Part # |
| 1/2" | 3/8" | plated steel | QM81 |
| 1/2" | 1/2" | plated steel | QM82 |
| 1/2" | 3/4" | plated steel | QM83 |
| 1/2" | 1" | plated steel | QM85 |
| 1/2" | 3/8" | brass | QB81 |
| 1/2" | 1/2" | brass | QB82 |
| 1/2" | 3/4" | brass | QB83 |
| 1/2" | 1" | brass | QB85 |
| 1/2" | 3/4" | 303 stainless | QSS83 |
Female Head x Female NPT End
| Body Size |
NPT Thread Size |
Material | Part # |
| 1/2" | 3/8" | plated steel | QM101 |
| 1/2" | 1/2" | plated steel | QM102 |
| 1/2" | 3/4" | plated steel | QM103 |
| 1/2" | 1" | plated steel | QM105 |
| 1/2" | 3/8" | brass | QB101 |
| 1/2" | 1/2" | brass | QB102 |
| 1/2" | 3/4" | brass | QB103 |
| 1/2" | 1" | brass | QB105 |
| 1/2" | 3/4" | 303 stainless | QSS103 |
Male Locking Head x Hose Shank
| Body Size |
Hose Shank Size |
Material | Part # |
| 1/2" | 1/2" | plated steel | QM33 |
| 1/2" | 3/4" | plated steel | QM44 |
| 1/2" | 1/2" | brass | QB33 |
| 1/2" | 3/4" | brass | QB44 |
Male Locking Head x Male NPT
| Body Size |
NPT Thread Size |
Material | Part # |
| 1/2" | 1/2" | plated steel | QM66 |
| 1/2" | 3/4" | plated steel | QM88 |
| 1/2" | 1/2" | brass | QB66 |
| 1/2" | 3/4" | brass | QB88 |
Positive safety lock
With locking nut in place sleeve cannot be moved to open coupling.
With locking nut in place sleeve cannot be moved to open coupling.
Dix-Lock Gaskets
| Body Size |
Buna-N Part # |
| 3/8" | QBM1 |
| 1/2" | QBM2 |
Dix-Lock Converter
| Body Size |
Steel Part # |
| 1/2" | QM0 |
Dix-Lock Cap
| Body Size |
Brass Part # |
Steel Part # |
Opt Qty |
| 1/2" | QBCAP | QMCAP | 25 |
 |
