Dixon Air Fittings
Dixon Brass Flow Control Valves

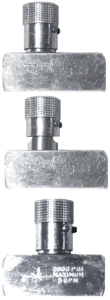

Dixon Brass Flow Control Valves

Vendor: Dixon Air Fittings

Coupling Type: Air & Multipurpose Couplings

Description:

Series F - Series PF - Series N

Coupling Category:

Air Fittings

Series F

  • Flow control valves provide precision flow control and full shutoff in one flow direction and automatically allow unrestricted free flow in the opposite direction.
  • Two-step needle provides fine adjustments at low flow with the first three turns of the adjusting knob.The next three turns give full-open needle position and conventional throttling control.
  • When flow is reversed, the heavy-duty poppet/retainer permits full-flow return capacity.
  • Exclusive color coded reference scale on the adjusting knob greatly simplifies flow setting, resetting, adjusting and return to an original flow.
  • A simple set screw locks the valve on any desired setting
  • maximum operating pressure: 2000 PSI at ambient temperature (70°F) for sizes 1/8" - 3/4", 500 PSI at ambient temperature (70°F) for 1"
  • also available in steel



Series F
Thread Brass Part #
1/8" BFC200
1/4" BFC400
3/8" BFC600
1/2" BFC800
3/4" BFC1200
1" BFC1600


Series PF

  • Utilizes a ball type check that meters flow of air in one direction and allows free flow in the reverse direction.
  • Used to control actuator speed by acting as a restriction.
  • maximum operating pressure: 2000 PSI at temperature (70°F)
  • cracking pressure: 5 PSI
  • also available in steel



Series PF
Thread Brass Part #
1/8" BPF200
1/4" BPF400
3/8" BPF600
1/2" BPF800


Series N

  • Ideal for use as speed controls on pneumatic systems where a reverse flow check valve is not needed.
  • Provides excellent control and reliable shutoff in a very small envelope.
  • Color coded reference scale on the adjusting knob simplifies setting, resetting, adjusting and quick return to a previous speed setting.
  • maximum operating pressure: 2000 PSI at ambient temperature (70°F) for sizes 1/8" - 3/4", 500 PSI at ambient temperature (70°F) for 1"
  • also available in steel



Series N
Thread Brass Part #
1/8" BN200
1/4" BN400
3/8" BN600
1/2" BN800
3/4" BN1200
1" BN1600
