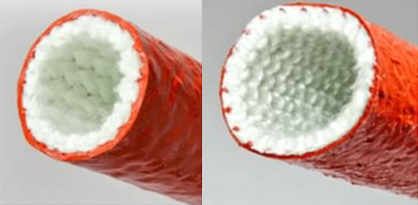

Pyrotex SG Aerospace Firesleeve

Heavy duty, silicone coated, braided fiberglass sleeve
Aerospace, hydraulic, and marine applications
Adheres to AS1072 Dimensional/ Weight Specifications
Continuous protection at 500°F (260°C)
Short term protection at 2200°F (1204°C)
Sheds molten metal splash in extreme environments
Size range available from 0.25-6.00" (6-152mm) I.D.

Pyrotex SG Industrial Firesleeve

Heavy duty, silicone coated, knitted fiberglass sleeve
Ideal for use in electric arc furnace (EAF) applications and other foundry applications
Continuous protection at 500°F (260°C)
Short term protection at 2200°F (1204°C)
Sheds molten metal splash in extreme environment
Size range available from 0.25-4.00" (6-152mm) I.D.

SAE AS1072 Aerospace and Industrial Firesleeve Data Sheet

Material Specifications

Material	Temperature Rating
Knitted or Braided Fiberglass Substrate	Continuous Protection 500°F (260°C) Short Term Exposure 2220°F (1204°C)
Fully Polymerized Silicone Coating

Resistivity

Molten Splash Resistance	Excellent
Water Resistance	Excellent
Hydraulic Fluids	Good
Chemical Resistivity	Good

Dielectric Strength

Tested Range: 8.0-12.5kV

Result: NEMA TF-1 Dielectric Grade A

Conductivity / Insulation Properties

ASTM D1518

k-value: 0.03 W/(m·K) R-value: 0.09 (m2 ·K/W)

Color Code (-##)
-10	RIO (standard)
-20	Aluminized
-30	Black
-40	Gray
-50	Yellow
-60	Blue
-70	Red
-80	Green

SAE AS1072 Aerospace and Industrial Firesleeve

Braided version meets dimensional specifications of the SAE AS1072 Aerospace Grade Firesleeve standard.
Standard color, Red Iron Oxide (RIO) and special Aluminized coating compound are compliant with the EU RoHS directive.
Other colors are available as well as custom colors upon request.

Part Numbers		Nominal ID		Dimensional Tolerance		Request Quote	Request Quote
Knitted	Braided	in	mm	OD(in)	OD(mm)	Knitted	Braided
PT04100-##	PT04200-##	1/4 (± 1/32)	6 (±0.79)	0.491 (±0.073)	12.47 (±1.89)	Request Quote	Request Quote
PT05100-##	PT05200-##	5/16 (± 1/32)	8 (±0.79)	0.552 (±0.073)	14.02 (± 1.89)	Request Quote	Request Quote
PT06100-##	PT06200-##	3/8 (± 1/32)	10 (±0.79)	0.636 (±0.073)	16.15 (± 1.89)	Request Quote	Request Quote
PT07100-##	PT07200-##	7/16 (± 1/32)	11 (±0.79)	0.692 (±0.073)	17.57 (±1.89)	Request Quote	Request Quote
PT08100-##	PT08200-##	1/2 (± 1/32)	13 (±0.79)	0.744 (±0.073)	18.89 (±1.89)	Request Quote	Request Quote
PT09100-##	PT09200-##	9/16 (± 1/32)	14 (±0.79)	0.818 (±0.073)	20.57 (± 1.89)	Request Quote	Request Quote
PT10100-##	PT10200-##	5/8 (± 1/32)	16 (±0.79)	0.946 (±0.073)	24.03 (± 1.89)	Request Quote	Request Quote
PT11100-##	PT11200-##	11/16 (± 1/32)	17 (±0.79)	0.912 (±0.073)	23.11 (± 1.89)	Request Quote	Request Quote
PT12100-##	PT12200-##	3/4 (± 1/32)	19 (±0.79)	1.028 (±0.073)	26.11 (± 1.89)	Request Quote	Request Quote
PT13100-##	PT13200-##	13/16 (± 1/32)	20 (±0.79)	1.112 (±0.073)	28.24 (± 1.89)	Request Quote	Request Quote
PT14100-##	PT14200-##	7/8 (± 1/32)	22 (±0.79)	1.251 (±0.073)	31.78 (±1.89)	Request Quote	Request Quote
PT15100-##	PT15200-##	15/16 (± 1/32)	23 (±0.79)	1.232 (±0.073)	31.29 (±1.89)	Request Quote	Request Quote
PT16100-##	PT16200-##	1 (± 1/16)	25 (±1.59)	1.304 (±0.104)	33.12 (±2.69)	Request Quote	Request Quote
PT18100-##	PT18200-##	1-1/8 (± 1/16)	29 (±1.59)	1.458 (±0.104)	37.03 (±2.69)	Request Quote	Request Quote
PT20100-##	PT20200-##	1-1/4 (± 1/16)	32 (±1.59)	1.565 (±0.104)	39.75 (±2.69)	Request Quote	Request Quote
PT22100-##	PT22200-##	1-3/8 (± 1/16)	35 (± 1.59)	1.707 (±0.104)	43.35 (±2.69)	Request Quote	Request Quote
PT24100-##	PT24200-##	1-1/2 (± 1/16)	38 (±1.59)	1.820 (±0.104)	46.23 (±2.69)	Request Quote	Request Quote
PT26100-##	PT26200-##	1-5/8 (± 1/16)	41 (± 1.59)	1.909 (±0.104)	48.49 (±2.69)	Request Quote	Request Quote
PT28100-##	PT28200-##	1-3/4 (± 1/16)	44 (±1.59)	2.088 (±0.104)	53.03 (±2.69)	Request Quote	Request Quote
PT30100-##	PT30200-##	1-7/8 (± 1/16)	48 (± 1.59)	2.178 (±0.104)	55.32 (±2.69)	Request Quote	Request Quote
PT32100-##	PT32200-##	2 (± 1/16)	51 (±1.59)	2.383 (±0.104)	60.53 (±2.69)	Request Quote	Request Quote
PT34100-##	PT34200-##	2-1/8 (± 1/16)	54 (± 1.59)	2.448 (±0.104)	62.18 (±2.69)	Request Quote	Request Quote
PT36100-##	PT36200-##	2-1/4 (± 1/16)	57 (±1.59)	2.610 (±0.104)	66.29 (±2.69)	Request Quote	Request Quote
PT38100-##	PT38200-##	2-3/8 (± 1/16)	60 (± 1.59)	2.687 (±0.104)	68.25 (±2.69)	Request Quote	Request Quote
PT40100-##	PT40200-##	2-1/2 (± 1/16)	64 (±1.59)	2.873 (±0.104)	72.97 (±2.69)	Request Quote	Request Quote
PT42100-##	PT42200-##	2-5/8 (± 1/16)	67 (± 1.59)	2.985 (±0.104)	75.82 (±2.69)	Request Quote	Request Quote
PT44100-##	PT44200-##	2-3/4 (± 1/16)	70 (±1.59)	3.081 (±0.104)	78.26 (±2.69)	Request Quote	Request Quote
PT48100-##	PT48200-##	3 (± 1/8)	76 (±3.17)	3.387 (±0.167)	86.03 (±4.27)	Request Quote	Request Quote
PT52100-##	PT52200-##	3-1/4 (± 1/8)	83 (±3.17)	3.560 (±0.167)	90.42 (±4.27)	Request Quote	Request Quote
PT56100-##	PT56200-##	3-1/2 (± 1/8)	89 (± 3.17)	3.389 (±0.167)	98.70 (±4.27)	Request Quote	Request Quote
PT60100-##	PT60200-##	3-3/4 (± 1/8)	95 (±3.17)	4.059 (±0.167)	103.89 (±4.27)	Request Quote	Request Quote
PT64100-##	PT64200-##	4 (± 1/4)	102 (± 6.35)	4.331 (±0.292)	110.01 (±7.45)	Request Quote	Request Quote
-	PT72200-##	4-1/2 (± 1/4)*	114 (±6.35)	4.784 (±0.292)	121.51 (±7.45)	-	Request Quote
-	PT80200-##	5 (± 1/2)*	127 (±12.70)	5.342 (±0.542)	135.69 (±13.80)	-	Request Quote
-	PT96200-##	6 (± 1/2)*	152 (± 12.70)	6.264 (±0.542)	164.19 (±13.80)	-	Request Quote
