Composite Polypropylene Hose - Heavy Duty Series
Types:
Chemical Hose
Sub Type:
Chemical Transfer Hose
Vendor: Willcox Hose
Application:
Multi-Purpose Chemical HoseHeavy Duty Series: 3091PG, 3094PS, 4091SG, and 4094SS
Typical Applications:
- In plant suction and discharge transfer
- Blending and drumming

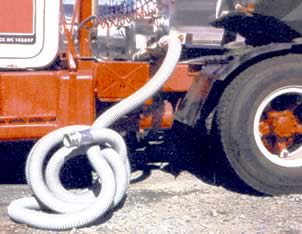

- Tank car and railcar transfer
Benefits and Features
- Extremely flexible and user friendly
- Seamless tubes to prevent leak paths
- Electrically continuous capability
- Retains flexibility in cold environments
|
Willcox Hose® Type 3091 is a heavy duty chemical transfer hose for ardous applications. With a 250 psi MWP up to 3" diameter (200 psi in 4" diameter) and a minimum four-to-one safety factor, this hose provides reliable and dependable chemical transfers for operators today and tomorrow. Available with its PVC impregnated cover that resists abrasion, ozone and UV attack makes it tough and durable in service. All factory fitted assemblies are hydrostatically tested to one and a half times MWP. Assemblies are available with carbon steel, T316 stainless steel, polypropylene, brass and other materials in a variety of end fitting configurations. |
Temperature:
-22° to +212°F (-20°C to +100°C ) * Depending on conveyant media
Lengths:
75 foot standard
Colors:
3091 PG: light gray br 3094 PS: dark gray with white stripe br 4091 SG: Standard dark blue with white stripe br 4094 SS: dark gray with yellow stripe
Options:
Other colors are available on request.
Available in long lengths
| Willcox Chemical Hose Dimensional Data Chart 1" - 4" Diameter Hose | |||||||
| NOMINAL ID IN. (MM) |
NOMINAL OD IN. (MM) |
MAX. MAWP PSI (BAR) STD. DUTY |
MAX. MAWP PSI (BAR) HVY. DUTY |
MIN.BEND RADIUS IN. (MM) |
WEIGHT LB/FT (KG/M) |
MAX. LENGTH FEET |
Request Quote |
| 1 (25) | 1-1/2 (38) | 200 (14) | 250 (17.5) | 4 (100) | .6 (.9) | 100 | Request Quote |
| 1-1/2 (38) | 2 (50) | 200 (14) | 250 (17.5) | 5 (125) | 1.0 (1.5) | 100 | Request Quote |
| 2 (50) | 2-1/2 (65) | 200 (14) | 250 (17.5) | 6 (150) | 1.5 (2.2) | 100 | Request Quote |
| 3 (75) | 3-1/2 (88) | 200 (14) | 250 (17.5) | 8 (200) | 2.1 (3.1) | 100 | Request Quote |
| 4 (100) | 4-1/2 (115) | 200 (14) | 250 (17.5) | 13 (325) | 2.3 (3.2) | 100 | Request Quote |
MAWP at 4:1 safety factor
| Willcox Internal and External Wire Construction Identification | ||
| STYLE | INTERNAL WIRE | EXTERNAL WIRE |
| GG | Galvanized Steel | Galvanized Steel |
| PG | Black Polypropylene Coated | Galvanized Steel |
| PS | Black Polypropylene Coated | Stainless Steel |
| PP | Black Polypropylene Coated | Black Polypropylene Coated |
| SG | Stainless Steel | Galvanized Steel |
| SS | Stainless Steel | Stainless Steel |
Notes:
- Fitting pressure rating may limit working pressure of an assembly.
- Increased operating temperatures will reduce working pressure of the hose.
- Rated working pressures are 70° F or worldwide ambient temperatures.
 |
