Piranha
Piranha Armor Belt Sewer Cleaning Hoses 4,000 PSI Series LAGR

Types:
Special Application

Vendor: Piranha

Application:

Harsh Environments - Demanding sewer cleaning environments requiring additional abrasion resistance.
High Pressure/Abrasion - High pressure sewer cleaning applications.

Features & Advantages

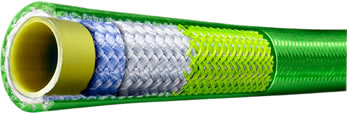

Patented Armor Belt Construction - Increases hose abrasion and cut resistance for longer service life. Greatly increased crush resistance. Provides rugged and reliable service.
Polyolefin Tube - Provides maximum resistance to hydrolysis.
High Tensile Synthetic Fiber Reinforcement - Contributes to low volumetric expansion and eliminates loss of strength from moisture absorption.
Polyether-Urethane Cover - Provides fungus resistance.
Unique Construction - All hose components are chemically bonded to maximize hose service life.
Optional Slither® Ultra Slick Cover - Design is also available; check with factory for details.
Factory Assemblies - All Piranha factory-assembled hoses are 100% pressure tested.
Reel Installation - Ideal for truck and trailer mounted reels.

Tube:

Yellow polyolefin

Reinforcement:

High tensile double synthetic fiber braids.
Polymer Belting - Protects reinforcement.

Cover:

Abrasion resistant polyether-urethane, perforated bonded construction - materials are chemically bonded together.
Slither® Cover Version - Polyether-urethane low coefficient of friction. (Optional)

Temperature:

-40˚F (-40˚C) to +150˚F (+66˚C)

Couplings:

Contact JGB for proper fitting requirements.

Lengths:

Standard Lengths - 400, 500, and 600 foot rolls.
Custom Lengths - Available and made to order.

Colors:

Green

Series Number

Nominal I.D.

Nominal O.D.

Max. Operating Pressure

Min. Burst Pressure

Min. Bend Radius

Weight

Request Quote

Inches

PSI

BAR

PSI

BAR

Inches

lbs/ft

LAGR-08

1/2

12.7

1.00

25.4

4,000

275.8

10,000

689.5

3.00

76.2

0.19
