Piranha

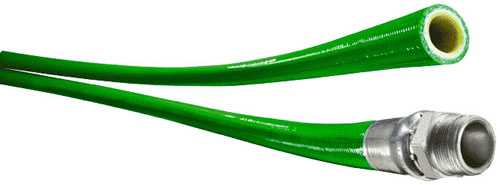

Piranha Armor Belt Sewer Cleaning Hoses 3,000 PSI Series HABU

Types:
Special Application

Vendor: Piranha

Application:

• Harsh Environments - Demanding sewer cleaning environments requiring additional abrasion resistance.
• High Pressure/Abrasion - High pressure sewer cleaning applications.

Features & Advantages

• Patented Armor Belt Construction - Increases hose abrasion and cut resistance for longer service life. Greatly increased crush resistance. Provides rugged and reliable service.
• Polyolefin Tube - Provides maximum resistance to hydrolysis.
• High Tensile Synthetic Fiber Reinforcement - Contributes to low volumetric expansion and eliminates loss of strength from moisture absorption.
• Polyether-Urethane Cover - Provides fungus resistance.
• Unique Construction - All hose components are chemically bonded to maximize hose service life.
• Optional Slither® Ultra Slick Cover - Design is also available; check with factory for details.
• Factory Assemblies - All Piranha factory-assembled hoses are 100% pressure tested.
• Reel Installation - Ideal for truck and trailer mounted reels.

Tube:

Yellow polyolefin

Reinforcement:

High tensile double synthetic fiber braids.
Polymer Belting - Protects reinforcement.

Cover:

Abrasion resistant polyether-urethane, perforated bonded construction - materials are chemically bonded together.
Slither® Cover Version - Polyether-urethane low coefficient of friction. (Optional)

Temperature:

-40˚F (-40˚C) to +150˚F (+66˚C)

Couplings:

Contact JGB for proper fitting requirements.

Lengths:

Standard Lengths - 400, 500, and 600 foot rolls.
Custom Lengths - Available and made to order.

Colors:

Blue

Series Number	Nominal I.D.		Nominal O.D.		Max. Operating Pressure		Min. Burst Pressure		Min. Bend Radius		Weight	Request Quote
	Inches	MM	Inches	MM	PSI	BAR	PSI	BAR	Inches	MM	lbs/ft
HABU-12	3/4	19.4	1.32	33.5	3,000	206.8	7,500	517.1	5.00	127.0	0.39	Request Quote
HABU-16	1	25.4	1.56	39.6	3,000	206.8	7,500	517.1	8.00	203.2	0.53	Request Quote
