Alfagomma Rubber Hose

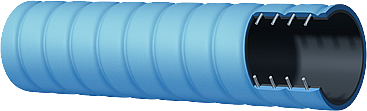

T606AE Series 150 PSI Corrugated Petroleum S & D – Arctic Hose

Types:
Petroleum Hose     Sub Type: Petroleum Petro Transfer Hose / Petroleum Suction & Discharge Hose

Vendor: Alfagomma Rubber Hose

Application:

For suction and discharge applications in truck and tank car transfer of gasoline, oil and other petroleum-based products with up to 50% aromatic content. Where extreme flexibility is needed in low temperature.

Working Pressure:

Constant Pressure – +150 psi

Tube:

Black conductive NBR.

Reinforcement:

High tensile textile cords with flexible steel helix wire.

Cover:

Blue corrugated – abrasion, ozone and hydrocarbon resistant.

Temperature:

-65°F (-54°C) to +180°F (+82°C)

Branding:

ALFAGOMMA – ITALY T606 – 10 BAR (150 PSI) PETROLEUM – S & D Arctic (in blue letters on yellow layline)

Couplings:

Quick-Acting, combination nipples attached with bands or internally expanded brass couplings with gasket seal attached with ferrules.

Series	ID (in)	ID (mm)	OD (in)	OD (mm)	Max Rec. WP (psi)	Vacuum HG (in)	Min. Bending Radius (in at 68°F)	Weight (lbs/ft)	Request a Quote
T606AE200X100	2 in	51 mm	2.48 in	63 mm	150 psi	30 inHg	3 in	1.06 lbs/ft	Request Quote
T606AE300X100	3 in	76 mm	3.54 in	90 mm	150 psi	30 inHg	4 1/2 in	1.84 lbs/ft	Request Quote
T606AE400X100	4 in	102 mm	4.57 in	116 mm	150 psi	30 inHg	6 in	2.67 lbs/ft	Request Quote
