Dyna Flex

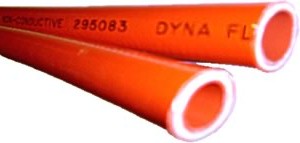

Twin-Line 3/4" SAE 100R8 / 1" SAE 100R7 (Orange)

Types:
Hydraulic Hose

Vendor: Dyna Flex

Application:

Medium pressure hydraulic systems. 7110-16 Meets or exceeds SAE 100R7 requirements. 8110-2P-12 Meets or exceeds SAE 100R8 requirements.

Tube:

Oil resistant synthetic polyester tube

Reinforcement:

7110-16 - Two braid high tensile synthetic fiber
8110-2P-12 - Two braid high tensile synthetic fiber

Cover:

Both lines orange non-conductive high abrasion resistant polyurethane mold and fungus resistant polyether-urethane featuring anti-stick additive for a snag resistant slick surface.

Temperature:

-65 degrees F. to +212 degrees F. with water based fluids

Colors:

Orange

Hose Part No.	Nominal I.D.		Nominal O.D.		Maximum Oper. Press.		Minimum Burst Press.		Min. Bend Radius (In.)	Wgt. Per 100 Ft. (Lbs.)	Request a Quote
	In.	mm.	In.	mm.	PSI	BAR	PSI	BAR
8110-2P-12	3/4	19.05	1.185	30.10	2,250	155	9,000	620	6	65	Request Quote
7110-16	1	25.4	1.42	36.07	1,000	69	4,000	276	6	65	Request Quote
