Goodyear/Veyance Technologies
Extremeflex Petroleum Transfer

Types:
Oilfield
Petroleum Hose     Sub Type: Petroleum Petro Transfer Hose

Vendor: Goodyear/Veyance Technologies

Application:

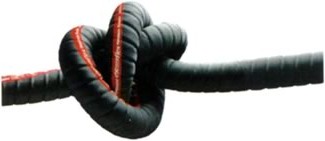

An extremely flexible and lightweight hose for use in tank truck and drilling operation to transfer diesel, ethanol, gasoline, oil and petroleum based products. corrugated construction for lower drag coefficient and superior abrasion resistance.

Up to 60% aromatics!

Tube:

Black Nitrile synthetic rubber

Cover:

Black Chemivic™ synthetic corrugated cover

Temperature:

-40°F to 200°F
(-40°C to 93°C)

Couplings:

Contact JGB for proper hose fitting and coupling recommendation.

Order Codes:

543-216

ID		NOM. OD		MAX. WP		BEND RADIUS		VACUUM HG		WEIGHT		Request a Quote
in.	mm.	in.	mm.	psi	Mpa	in.	mm.	in.	mm.	lb./ft.	kg./m.
3/4	19	1.20	30.5	250	1.72	.75	19.05	29	737	0.44	0.65	Request Quote
1	25	1.45	36.8	250	1.72	1	25.40	29	737	0.55	0.81	Request Quote
1-1/2	38	1.91	48.5	250	1.72	1.5	38.10	29	737	0.73	1.08	Request Quote
2	51	2.43	61.8	250	1.72	2	50.80	29	737	0.96	1.43	Request Quote
2-1/2	63	3.00	76.1	200	1.37	2.5	63.50	29	737	1.41	2.10	Request Quote
3	76	3.50	88 8	200	1.37	3	76.20	29	737	1.69	2.51	Request Quote
4	102	4.56	115.7	150	1.03	4	101.60	29	737	2.42	3.61	Request Quote
