Goodyear/Veyance Technologies
Paladin

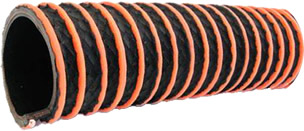

Paladin

Types:
Petroleum Hose     Sub Type: Petroleum Petro Transfer Hose


Vendor: Goodyear/Veyance Technologies

Application:

Designed as a lightweight and flexible hose to transfer biodiesel and ethanol blends, gasoline and other petroleum products under pressure, gravity flow, or medium suction (up to 23" Hg) at ambient temperatures.
Maximum aromatic content 60%.
Outer PVC helix provides abrasion resistance and low coefficient of friction.
With Antistatic wire (low resistance).

Tube:

Black Nitrile synthetic rubber (static dissipating)

Reinforcement:

Synthetic fabric plies

Cover:

Black Chemivic® synthetic rubber with Orange Pliovic outer helix

Temperature:

-40°F to 160°F (-40°C to 71°C)

Packaging:

100’ lengths, coiled and bagel pack

Branding:

Example: Goodyear® Paladin® Drop Hose (Date Code) Made in Canada.

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Order Codes:

543-227

Nom. ID Nom. OD Max WP Bend Radius Vacuum HG Weight Request a Quote
in. mm in. mm. psi Mpa in. mm. in. mm. lb./ft. kg./m.
2 50.8 2.87 72.9 150 1.03 2 51 23 584 1.04 1.55 Request Quote
3 76.2 3.92 99.6 150 1.03 3 76 23 584 1.58 2.35 Request Quote
4 101.6 4.85 123.2 75 0.52 5 127 23 584 1.94 2.89 Request Quote
