Goodyear/Veyance Technologies

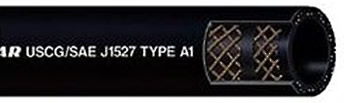

Marine Fuel Line USCG - SAE J1527 & ISO 7840 Type A1

Types:
Marine Hose

Vendor: Goodyear/Veyance Technologies

Application:

For marine gasoline tanks. For fuel feed and vent applications on marine pleasure craft. It meets U.S. Coast Guard and International Marine Certification Institute requirements for type A1 service.

Tube:

Black Nitrile synthetic rubber RMA Class A (High Oil Resistance)

Reinforcement:

Spiral synthetic yarn.

Cover:

Black Chemivic® synthetic rubber

Temperature:

0°F to 115°F (-17°C to 46°C)

Packaging:

200’ reels, maximum 3 pieces, increments of 50’

Branding:

Example: Goodyear® USCG/SAE J 1527 Type A1 ISO 7840-A1 CE

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Order Codes:

595-032

Colors:

Black

ID		NOM. OD		MAX WP		WEIGHT		Request a Quote
in.	mm.	in.	mm.	psi	Mpa	lb./ft.	kg./m.
1/4	6.4	.65	16.5	49	0.34	0.17	0.25	Request Quote
5/16	7.9	.71	18.0	49	0.34	0.19	0.28	Request Quote
3/8	9.5	.78	19.8	49	0.34	0.20	0.30	Request Quote
1/2	12.7	.89	23.0	36	0.25	0.26	0.39	Request Quote
5/8	15.9	1.06	25.8	36	0.25	0.35	0.52	Request Quote
