Goodyear/Veyance Technologies

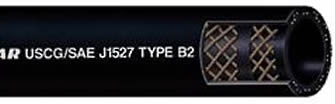

Marine Fuel Feed Vent USCG/SAE J1527 B2 Non-Fire Retardant

Types:
Marine Hose

Vendor: Goodyear/Veyance Technologies

Application:

The Marine Fuel Feed Vent Hose, USCG/SAE J1527 Type B2, is for fuel feed and vent application on marine pleasure craft.

Tube:

Nitrile synthetic rubber RMA Class A (High Oil Resistance)

Reinforcement:

Spiral synthetic yarn.

Cover:

Gray Chemivic™ synthetic rubber

Temperature:

0°F to 115°F (-17°C to 46°C)

Packaging:

500’–750’, maximum 3 pieces, minimum length 35’

Branding:

Example: Goodyear® USCG/SAE J 1527 Type B2.

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Order Codes:

595-009

ID		NOM. OD		MAX WP		WEIGHT		Request a Quote
in.	mm.	in.	mm.	psi	Mpa	lb./ft.	kg./m.
1/4	6.4	0.58	14.7	34	0.23	0.12	0.18	Request Quote
5/16	7.9	0.66	16.8	34	0.23	0.15	0.22	Request Quote
3/8	9.5	0.70	17.8	34	0.23	0.16	0.24	Request Quote
1/2	12.7	0.81	20.6	34	0.23	0.18	0.27	Request Quote
5/8	15.9	0.96	24.4	34	0.23	0.19	0.28	Request Quote
