Goodyear/Veyance Technologies

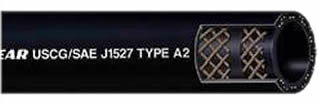

Marine Fuel Feed Vent USCG/SAE J1527 A2 Fire Retardant

Types:
Marine Hose

Vendor: Goodyear/Veyance Technologies

Application:

For fuel feed and vent application on marine pleasure craft.

Tube:

Black Nitrile synthetic rubber RMA Class A (High Oil Resistance)

Reinforcement:

Spiral synthetic yarn

Cover:

Gray Chemivic™ synthetic rubber

Temperature:

0°F to 115°F (-17°C to 46°C)

Packaging:

500’–750’ reels, maximum 3 pieces, minimum length 35’

Branding:

Example: Goodyear® USCG/SAE J 1527 Type A2

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Order Codes:

595-022

Colors:

Black with gray cover

ID		NOM. OD		MAX WP		WEIGHT		Request a Quote
in.	mm.	in.	mm.	psi	Mpa	lb./ft.	kg./m.
1/4	6.4	0.66	16.8	35	0.24	0.19	0.28	Request Quote
5/16	7.9	0.72	18.3	35	0.24	0.22	0.33	Request Quote
3/8	9.5	0.78	19.8	35	0.24	0.24	0.36	Request Quote
1/2	12.7	0.91	23.1	35	0.24	0.3	0.45	Request Quote
5/8	15.9	0.96	25.8	35	0.24	0.34	0.51	Request Quote
