Goodyear/Veyance Technologies
Green Hornet

Types:
Suction & Discharge     Sub Type: Water Suction & Discharge Hose
Water Hose     Sub Type: Water Suction & Discharge Hose

Vendor: Goodyear/Veyance Technologies

Application:

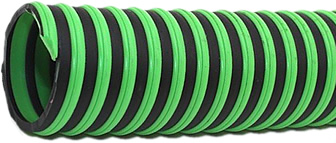

Medium-duty, light weight construction, retains flexibility in cold weather. Smooth bore tube minimizes material buildup. Slightly corrugated outer helix promotes abrasion resistance, low coefficient of friction and ease of coupling. Common uses can be found in waste management, construction, agricultural, marine and manufacturing industries.

Tube:

Black thermoplastic rubber, RMA Class B (medium oil resistance)

Reinforcement:

Rigid, lime-green, polyethylene helix

Temperature:

-20 to 180 ° F (-28 to 82 ° C)

Branding:

Not branded

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Order Codes:

586-551

Nom. ID		Nom. OD		Max WP		Bend Radius		Vacuum HG		Weight		Request a Quote
in.	mm.	in.	mm.	psi	Mpa	in.	mm.	in.	mm.	lb./ft.	kg./m
1-1/4	31.8	1.53	38.9	50	0.35	3	76.2	29	737	0.27	0.40	Request a Quote
1-1/2	38.1	1.86	47.2	50	0.35	4	101.6	29	737	0.32	0.48	Request a Quote
2	50.8	2.40	61.0	50	0.35	5	127.0	29	737	0.56	0.83	Request a Quote
2-1/2	63.5	2.99	75.9	50	0.35	9	228.6	29	737	0.75	1.12	Request a Quote
3	76.2	3.47	88.1	45	0.31	9	304.8	29	737	0.92	1.37	Request a Quote
4	101.6	4.67	118.6	40	0.28	16	457.2	29	737	1.60	2.39	Request a Quote
6	152.4	6.75	171.4	25	0.17	26	660.4	29	737	2.88	4.30	Request a Quote
