Arrow Hose and Tubing Inc.

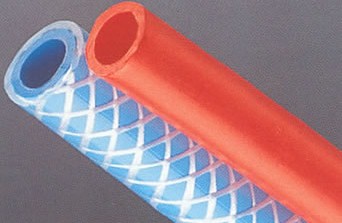

Type 63 / FLO-GUARD BARRIER TUBING
Types:
Tubing
Vendor: Arrow Hose and Tubing Inc.
Application:
FLO-GUARD BARRIER TUBING
(TYPE 58)NSF-51 & NSF-61
- Barrier Applications
- Beer Tubing
- Raw Juices or Concentrates
- Hot Beverages
- NSF Certified under Standard NSF-51 & NSF-61
- Materials Comply with FDA Specifications
- Natural Barrier Inner Core
- Modified Copolymer Cover
- Glass Smooth Inner Core Gives Maximum Flavour Protection
- Allows for Reuse After Cleaning
Temperature:
-40°F to +200°F
Couplings:
Contact JGB for proper fitting recommendation and coupling procedure.
| Type | I.D. Inches | O.D. Inches | Working Pressure at 68°F | Lbs Per 100 Ft. | Length | Request Quote |
| 63-0400 | 17/64 | .517 | 300 | 6.5 | 500 | Request Quote |
| 63-04-01 | 17/64 | .457 | 300 | 6.2 | 500 | Request Quote |
| 63-0600 | 3/8 | .635 | 300 | 9.0 | 300 | Request Quote |
| 63-06-01 | 3/8 | .593 | 300 | 8.6 | 300 | Request Quote |
 |
