Arrow Hose and Tubing Inc.

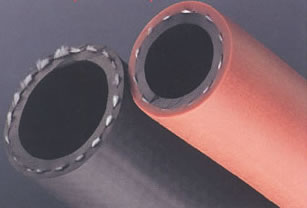

Type 36 / MULTI-SERVICE HOSE
Types:
Air and Multipurpose Hose
Vendor: Arrow Hose and Tubing Inc.
Application:
- Air & Water Transfer
- Light Chemical Transfer
- Industrial And Agricultural
- Construction Air Line
- In Plant Air Service
- Blended Polymer Tube, Thermo Elastomer Cover
- High Tensile Polyester Reinforcement
- Light Weight, Non-Marking
- Low Temp Flexibility
- Good Abrasion Resistance
- Meets or Exceeds RMA Grade 1 Class A Oil Resistance Standard
- Non-Conductivity of 1 Mega Ohm
- U.V. and Ozone Resistant
Temperature:
-20°F to +175°F
Packaging:
Couplings:
Contact JGB for proper fitting recommendation and coupling procedure.
| Type | I.D. Inches | O.D. Inches |
Working Pressure at 68°F |
Lbs Per Hundred Feet |
Length | Request Quote |
| 36-0410 | 1/4 | 1/2 | 150 | 8.7 | 700 | Request Quote |
| 36-0420 | 1/4 | 1/2 | 250 | 8.7 | 700 | Request Quote |
| 36-0520 | 5/16 | .593 | 250 | 11.0 | 700 | Request Quote |
| 36-0610 | 3/8 | .687 | 150 | 12.0 | 700 | Request Quote |
| 36-0620 | 3/8 | .687 | 250 | 12.0 | 700 | Request Quote |
| 36-0810 | 1/2 | .812 | 150 | 18.5 | 700 | Request Quote |
| 36-0820 | 1/2 | .875 | 250 | 24.0 | 700 | Request Quote |
| 36-1010 | 5/8 | .950 | 150 | 23.1 | 700 | Request Quote |
| 36-1020 | 5/8 | .975 | 250 | 23.1 | 700 | Request Quote |
| 36-1210 | 3/4 | 1.060 | 150 | 25 | 700 | Request Quote |
| 36-1220 | 3/4 | 1.156 | 250 | 35.4 | 700 | Request Quote |
| 36-1620 | 1 | 1.375 | 200 | 43.0 | 500 | Request Quote |
| 36-2010 | 1-1/4 | 1.682 | 150 | 60.0 | 500 | Request Quote |
| 36-2410 | 1-1/2 | 1.932 | 150 | 70.0 | 500 | Request Quote |
| 36-3210 | 2 | 2.480 | 125 | 99.4 | 300 | Request Quote |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
