Arrow Hose and Tubing Inc.

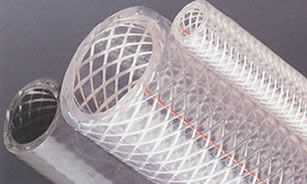

Type 21 / HEAVY DUTY CLEAR BRAIDED PVC HOSE/FOOD GRADE
Types:
Tubing
Vendor: Arrow Hose and Tubing Inc.
Application:
- Air, Water & Food Transfer
- Light Vacuum Lines
- Wire Conduit
- NSF Certified under Standard NSF-51
- Compounds Used Made from Materials on the FDA List
- Clear PVC Tube
- Light Weight, Non-Marking & Flexible
- Tight Tolerances
Temperature:
+25°F to +150°F
Couplings:
Contact JGB for proper fitting recommendation and coupling procedure.
| Type | I.D. Inches | O.D. Inches |
Working Pressure at 68°F |
Lbs Per Hundred Feet |
Length | Request Quote |
| 21-0408 | 1/4 | 1/2 | 275 | 8.1 | 300 | Request Quote |
| 21-0509 | 5/16 | 9/16 | 275 | 9.4 | 300 | Request Quote |
| 21-0610 | 3/8 | 5/8 | 250 | 10.8 | 300 | Request Quote |
| 21-0813 | 1/2 | 13/16 | 250 | 17.7 | 300 | Request Quote |
| 21-1218 | 3/4 | 1-1/8 | 175 | 29.6 | 300 | Request Quote |
| 21-1622 | 1 | 1-3/8 | 150 | 37.4 | 200 | Request Quote |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
