Texcel

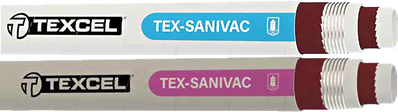

TEX-SANIVAC / FDA Sanitary Vacuum Hose

Types:
Sanitary Food Grade     Sub Type: General Food Hose

Vendor: Texcel

Application:

Tube and cover designed for suction, discharge or transfer of food and potable water. Highly resistant to animal fat and vegetable oils.
NOTE: It is recommended that all food grade hose be thoroughly flushed prior to initial use

Safety Factor:

3:1

Working Pressure:

150 psi

Vacuum:

29 in./HG

Features:

FDA and USDA compliant

Tube:

White Nitrile

Reinforcement:

High tensile tire cord plies; Dual helix wire

Cover:

White or Gray Neoprene

Temperature:

-22°F to +185°F

Packaging:

Coiled, double wrapped, ends capped

Branding:

TEXCEL® TEX-SANIVAC - SANITARY SUCTION HOSE 150 PSI W.P. MEETS FDA AND USDA

Lengths:

100/200 ft. standard length (Cut Lengths Available.)

ID	Part Number	OD	Bend Radius	Weight/Foot	Request a Quote
(in.)		(in.)	(in.)	(lbs.)
1-1/2	SANV-1.5	2-1/64	3-3/4	0.93	Request Quote
2	SANV-2.0	2-33/64	5	1.20	Request Quote
2-1/2	SANV-2.5	3-3/64	6	1.71	Request Quote
3	SANV-3.0	3-35/64	7	2.09	Request Quote
4	SANV-4.0	4-5/8	9	2.94	Request Quote
