Texcel

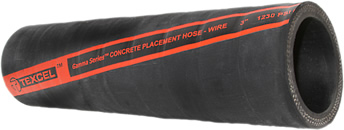

GAMMA-WIRE CRETE / Wire Concrete Placement Hose

Types:
Material Handling Hose     Sub Type: Material Handling Cement and Concrete

Vendor: Texcel

Application:

A heavy-duty hose designed to handle the most abrasive applications and weather conditions. Suitable for handling wet concrete in areas where flex is critical. Ideal for use on high pressure concrete pumps or boom trucks where a tough, durable hose is required for high pressure concrete pumping and placing applications.

Safety Factor:

2:1 (per ASME standards)

Features:

Meets ASME B3.27-2009 specifications

Tube:

Black, wear-resistant, GUM/SBR blend

Reinforcement:

Multiple steel wire plies

Cover:

Black, SBR, cut and gouge-resistant

Temperature:

-40°F to +200°F

Branding:

TEXCEL GAMMA™ SERIES CONCRETE PLACEMENT HOSE – WIRE XX" 1230 PSI (85 BAR) WP XXLBS/FT (F.W.C.) MEETS OR EXCEEDS ASME B30.27-2009

Options:

Cut Lengths Available

I.D.	O.D.	Standard Length	Working Pressure	Burst Pressure	Weight/Foot	Request a Quote
(in.)	(in.)	(ft.)	(psi)/(bar)	(psi)/(bar)	(lbs.)
2	2-3/4	100	1230/85	2460/170	1.86	Request Quote
2-1/2	3-3/8	100	1230/85	2460/170	2.67	Request Quote
3	3-15/16	100	1230/85	2460/170	3.37	Request Quote
4	5-1/16	100	1230/85	2460/170	5.31	Request Quote
5	6-1/8	50	1230/85	2460/170	6.57	Request Quote
