Texcel

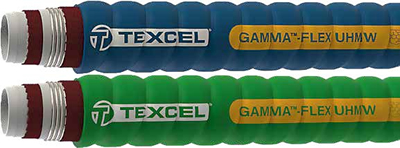

GAMMA™-FLEX UHMW, Ultra-High Molecular Weight Polyethylene Chemical Hose

Types:
Chemical Hose     Sub Type: Chemical Suction & Discharge Hose
Suction & Discharge     Sub Type: Chemical Suction & Discharge Hose

Vendor: Texcel

Application:

A more flexible chemical hose designed to handle 98% of all chemicals, solvents and corrosive liquids in both pressure and suction service.

Safety Factor

4:1

Features:

Exceptional flexibility

Working Pressure:

200 psi

Vacuum:

29 in./HG

Tube:

Clear, ultra high molecular weight polyethylene

Reinforcement:

High tensile strength tire cord plies, Helix wire

Cover:

Blue or green*, EPDM (flex corrugated)

Temperature:

-40°F to +250°F (intermittent) (Temperature rating depends on specific chemical conveyed and concentration)

Branding:

TEXCEL® GAMMA™-FLEX UHMW - CHEMICAL SUCTION AND DISCHARGE HOSE 200 PSI W.P. UHMW TUBE

Lengths:

Cut Lengths Available

Colors:

Blue or Green

ID	Part Number	OD	Standard Length	Bend Radius	Weight/ Foot	Request a Quote
(in.)		(in.)	(ft.)	(in.)	(lbs.)
1	GUH20C1-1.0	1-7/16	100/200	2.5	0.57	Request Quote
1-1/4	GUH-20C1-1.25	1-45/64	100/200	2.75	0.62	Request Quote
1-1/2	GUH20C1-1.5	1-61/64	100/200	3	0.81	Request Quote
2	GUH20C1-2.0	2-31/64	100/200	4	1.11	Request Quote
2-1/2	GUH20C1-2.5	2-63/64	100/200	5	1.40	Request Quote
3	GUH20C1-3.0	3-35/64	100/200	6	1.77	Request Quote
4	GUH20C1-4.0	4-9/16	100/200	8	2.83	Request Quote
6	GUH20C1-6.0	6-53/64	20/25/100	20	5.50	Request Quote
