Texcel
SIGMA-POLY MHH™ / Polyurethane Food Grade Suction & Discharge Hose
Types:
Sanitary Food Grade
Sub Type:
PVC Food Hose
Vendor: Texcel
Application:
Heavy-duty construction that complies with all applicable FDA requirements. Clear polyurethane and blue PVC helix construction allows for visual confirmation of material flow. Smooth bore construction eliminates material build up. Yarn reinforced for discharge applications. Heavy corrugation provides extra flexibility. Embedded wire prevents static electricity build up. Compare To 2020.SAFETY NOTE: Grounding wire must be properly terminated at both ends in order to dissipate static electricity
Safety Factor:
3:1Features:
FDA and USDA compliant, Phthalate FreeTube:

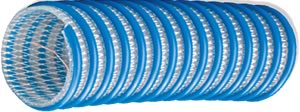

Clear, flexible polyurethane with a blue, tough vinyl right-handed helix; synthetic yarn reinforcement, embedded copper wire for grounding
Temperature:
-40˚F to +150˚F
Branding:
TEXCEL® SIGMA-POLY MHH™ - POLYURETHANE FOOD GRADE SUCTION / DISCHARGE HOSE -
| I.D. (in.) | Part Number | O.D. (in.) | Std. Length (Ft.) | Working Pressure (psi) | Vacuum (in./HG) | Bend Radius (Lbs./Ft.) | Weight (Lbs./Ft.) | Request a Quote |
| 3 | SPVC-MHH-3.0 | 3.78 | 100 | 100 | 29 | 10 | 1.18 | Request Quote |
| 4 | SPVC-MHH-4.0 | 4.85 | 100 | 75 | 29 | 12 | 1.58 | Request Quote |
| 5 | SPVC-MHH-5.0 | 5.80 | 20/50/100 | 70 | 28 | 14 | 2.47 | Request Quote |
| 6 | SPVC-MHH-6.0 | 6.93 | 20/50/100 | 70 | 28 | 14 | 2.86 | Request Quote |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
