Texcel
SIGMA-HD CLEAR PVC

Types:
Suction & Discharge     Sub Type: Water Suction & Discharge Hose
Water Hose     Sub Type: Water Suction & Discharge Hose

Vendor: Texcel

Application:

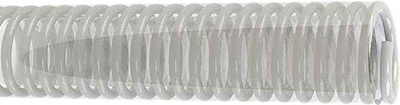

Heavy-Duty Clear PVC Water Suction Hose
Premium, heavy-duty yet economical construction for great durability. Clear PVC allows visual confirmation of product flow.

Safety Factor

3:1

Tube:

Clear PVC with white helix

Reinforcement:

Tough vinyl helix (white)

Temperature:

-4˚F to +150˚F (service temperature depends on actual application)

Branding:

TEXCEL® SIGMA-HD CLEAR PVC™ - HEAVY DUTY WATER SUCTION HOSE --LOT

Lengths:

Standard Lengths Only

Colors:

Clear with white helix

I.D.	Part Number	O.D.	Std. Length	Working	Vacuum (in./HG)	Bend Radius	Lbs./Ft.	Request a Quote
3/4"	SPVC-CL-.75	0.95"	100'	100	29	2"	0.2	Request Quote
1"	SPVC-CL-1.0	1.26"	100'	100	29	2.5"	0.27	Request Quote
1-1/2"	SPVC-CL-1.5	1.82"	100'	85	29	4"	0.39	Request Quote
2"	SPVC-CL-2.0	2.39"	100'	70	29	5"	0.57	Request Quote
2-1/2"	SPVC-CL-2.5	2.93"	100'	70	29	6.5"	0.74	Request Quote
3"	SPVC-CL-3.0	3.43"	100'	65	29	8.5"	0.94	Request Quote
*4"	SPVC-CL-4.0	4.53"	100'	65	29	12"	1.48	Request Quote
*5"	SPVC-CL-5.0	5.55"	100'	50	29	14"	2.15	Request Quote
*6"	SPVC-CL-6.0	6.67"	20'/100'	50	29	15"	2.89	Request Quote
*8"	SPVC-CL-8.0	8.83"	20'	45	29	20"	4.37	Request Quote
