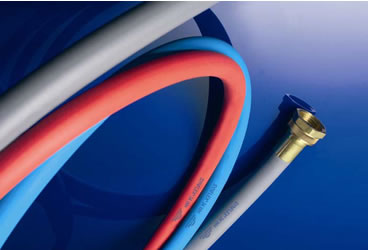

Synflex
34WH 115 PSI Hot Water Hose

Types:
Hydraulic Hose

Vendor: Synflex

Application:

• NSF 51 and 61 rated transport of potable water
• Dispensing of hot water, detergent mixes up to 200°F (94°C)
• Cleaning equipment used in restaurants, hotels, hospitals.
• Wash-down equipment used in various processing industries:
  • Food processing
  • Beverage
  • Pharmaceutical
  • Chemical, petrochemical, refining Paper
• Dishwashers, washing machines
• Chemical dispersion and control equipment
• Soaps and detergents dispensing systems

Features

NSF 61 and NSF 51 Rated Synflex® 34WH has been approved for potable water as well as food cleaning applications. While NSF 61 approved, Synflex® 34WH is also designed for hot water and detergent mixes suitable for food processing washdown equipment.

High Temperature Applications - Synflex®34WH can be used in applications up to 200°F. Hot water and hot detergents are well suited for this hose.

Extremely Flexible - Synflex® 34WH is designed to be flexible in hand held applications.

Available in standard 3/16”, 1/4”, 5/16”, 3/8”, 1/2” ID.

Custom sizes available up to 1” ID.

Tube:

Thermoplastic elastomer seamless extrusion. The tube material is listed under ANSI NSF 51 and NSF 61.

Reinforcement:

Synthetic fiber contra-helically spiraled around the tube.

Cover:

Bonded seamless thermoplastic elastomer. The cover is available in gray, red, blue as well as other custom colors.

Temperature:

-15°F to 200°F (-20°C to 94°C)

Part Number	Nominal I.D.		Maximum O.D.		Minimum Bend Radius		Maximum Working Pressure At Ambient Temp		Minimum Burst Pressure		Weight		Request a Quote
	in	mm	in	mm	in	mm	psi	bar	psi	bar	100 ftlbs/	100 mkg/
34WH-03	3/16	4.8	.385	9.8	.80	20.3	150	10.34	500	34.48	3.5	5.21	Request Quote
34WH-04	1/4	6.4	.448	11.4	.95	24.1	180	12.41	575	39.65	4.4	6.55	Request Quote
34WH-05	5/16	7.9	.575	14.6	1.10	27.9	190	13.10	620	42.76	7.3	10.86	Request Quote
34WH-06	3/8	9.5	.637	16.2	1.25	31.8	200	13.79	685	47.24	8.5	12.65	Request Quote
34WH-08	1/2	12.7	.765	19.4	1.50	38.1	160	11.03	520	35.86	10.1	15.03	Request Quote
