Kurt Hydraulics

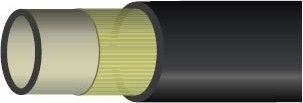

SAE 100R8, DIN EN 855 Hydraulic Hose
Types:
Hydraulic Hose
Vendor: Kurt Hydraulics
Application:
Recommended for high pressure hydraulic oil lines.Tube:
Nylon
Reinforcement:
Two synthetic fiber braids
Cover:
Abrasion, ozone and weather resistant black urethane
Temperature:
-40°F to +212°F
Category:
Thermoplastic Hose
| Part Number | Hose I.D. (in.) | HoseO.D, (in.) | Rated W.P. (psi) | Min. Burst (psi) | Min. Bend (in.) | Request Quote |
| R8-02 | 1/8 | 0 41 | 5000 | 20000 | 50 | Request Quote |
| R8-03 | 3/16 | 0 52 | 5000 | 20000 | 1 50 | Request Quote |
| R8-04 | 1/4 | 0 63 | 5000 | 20000 | 2 00 | Request Quote |
| R8-05 | 5/16 | 0 67 | 4200 | 16800 | 2 50 | Request Quote |
| R8-06 | 3/8 | 0 77 | 4000 | 16000 | 2 50 | Request Quote |
| R8-08 | 1/2 | 0 89 | 3500 | 14000 | 4 00 | Request Quote |
 |
