Kurt Hydraulics

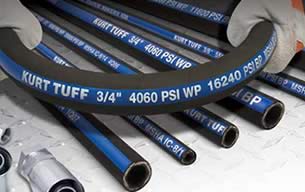

TUFF Hydraulic Hose

TUFF Hydraulic Hose

Types:
Hydraulic Hose


Vendor: Kurt Hydraulics

Application:

Features:
  • Extra flexible high pressure braided hose
  • Abrasion resistant tuff cover
  • Very high pressure
  • Impulse tested up to 1,000,000 cycles
  • Light weight
  • Uses Std or W Series couplings

Recommended for high pressure hydraulic oil lines.
One million impulse cycle hose.

Tube:

Oil resistant synthetic rubber

Reinforcement:

Two high tensile steel wire braids

Cover:

10X abrasion, ozone and weather resistant synthetic rubber
Meets flame resistant MSHA designation

Temperature:

-40°F to +212°F (+248°F Max)

Category:

Braided Hose

Part Number Hose I D (in ) Hose O D (in ) Rated W P (psi) Min Burst (psi) Min Bend (in )  Request Quote
KT-04 1/4 0 58 6530 26120 1 8 Request Quote
KT-06 3/8 0 69 5585 22340 2 8 Request Quote
KT-08 1/2 0 81 5000 20000 3 5 Request Quote
KT-10 5/8 0 93 4205 16820 5 1 Request Quote
KT-12 3/4 1 09 4060 16240 6 3 Request Quote
KT-16 1 1 40 2900 11600 8 25 Request Quote
