Novaflex

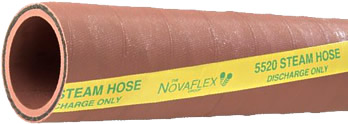

5520 Red Low Pressure Non-Conductive Steam Hose 100psi

5520 Red Low Pressure Non-Conductive Steam Hose 100psi

Types:
Steam Hose


Vendor: Novaflex

Application:

This textile reinforced steam hose is an excellent flexible light weight hose for transferring steam in medium temperature applications that require an electrically non-conductive hose.

Tube:

Red EPDM rubber

Reinforcement:

Plies of fiberglass tire cord

Cover:

Smooth Red weather and abrasion resistant EPDM rubber

Temperature:

Range: up to 338°F

Lengths:

100 ft.

Part No ID OD Plies
Fiberglass
WP
psi
WT
LBS/FT
Request Quote
5520RE-00500-00 1/2 1.02 4 100 0.34 Request Quote
5520RE-00750-00 3/4 1.27 4 100 0.45 Request Quote
5520RE-01000-00 1 1.52 4 100 0.56 Request Quote
5520RE-01250-00 1-1/4 1.82 4 100 0.75 Request Quote
5520RE-01500-00 1-1/2 2.07 4 100 0.87 Request Quote
5520RE-02000-00 2 2.57 4 100 1.11 Request Quote
5520RE-03000-00 3 3.76 6 100 2.19 Request Quote
