Novaflex
9540 Hi-Volt Hose

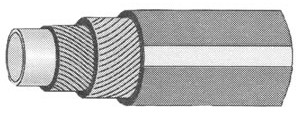

9540 Hi-Volt Hose

Types:
Special Application


Vendor: Novaflex

Application:

Used in applications where complete electrical non conductivity is a critical issue.
Both tube and cover are non conductive material.
Suitable for severe electrical applications like power plants and underground mining applications.

Tube:

Yellow non-conductive synthetic rubber

Reinforcement:

Plies of polyester tire cord

Cover:

Green non-conductive weather and abrasion resistant rubber

Temperature:

Maximum temperature up to 180°F.

Lengths:

100 ft

Part No ID OD Plies WP
psi
WT
LBS/FT
Request Quote
9540YS-00500-00 1/2 1 2 200 0.38 Request Quote
9540YS-00750-00 3/4 1.25 2 200 0.51 Request Quote
9540YS-01000-00 1 1.54 2 200 0.71 Request Quote
9540YS-01125-00 1-1/8 1.72 2 200 0.86 Request Quote
9540YS-01250-00 1-1/4 1.84 2 200 0.93 Request Quote
9540YS-01375-00 1-3/8 1.97 2 200 1.01 Request Quote
9540YS-01500-00 1-1/2 2.09 2 200 1.08 Request Quote
9540YS-01563-00 1-9/16 2.16 2 200 1.13 Request Quote
9540YS-01625-00 1-5/8 2.22 2 200 1.16 Request Quote
9540YS-01750-00 1-3/4 2.36 2 200 1.33 Request Quote
9540YS-01813-00 1-13/16 2.41 2 200 1.37 Request Quote
9540YS-01875-00 1-7/8 2.48 2 200 1.41 Request Quote
9540YS-02000-00 2 2.71 4 200 1.71 Request Quote
9540YS-02250-00 2-1/4 2.99 4 200 2.11 Request Quote
9540YS-02375-00 2-3/8 3.11 4 200 2.21 Request Quote
9540YS-02500-00 2-1/2 3.23 4 200 2.31 Request Quote
9540YS-03000-00 3 3.73 4 200 2.71 Request Quote
9540YS-03500-00 3-1/2 4.23 4 200 3.11 Request Quote
9540YS-04000-00 4 4.73 4 200 3.52 Request Quote
Electrical resistivity: 100 gigaohms per foot at 1000 volts DC or better.
