Novaflex

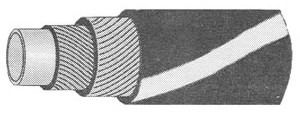

9500 Lo-Volt Hose

Types:
Special Application

Vendor: Novaflex

Application:

This hose has a conductive tube that allows a low level electrical charge.
Suitable for applications, including cable covers and electrical protective covers.

Tube:

Yellow non-conductive synthetic rubber

Reinforcement:

Plies of polyester tire cord

Cover:

Black weather and abrasion resistant rubber

Temperature:

Up to 180°F

Lengths:

100 ft.

Part No	ID	OD	Plies	WP psi	WT LBS/FT	Request Quote
9500YS-00750-00	3/4	1.21	2	200	0.44	Request Quote
9500YS-04100-00	1	1.46	2	200	0.58	Request Quote
9500YS-01125-00	1-1/8	1.58	2	200	0.64	Request Quote
9500YS-01250-00	1-1/4	1.71	2	200	0.7	Request Quote
9500YS-01375-00	1-3/8	1.84	2	200	0.76	Request Quote
9500YS-01500-00	1-1/2	1.96	2	200	0.82	Request Quote
9500YS-01625-00	1-5/8	2.13	2	200	0.98	Request Quote
9500YS-01688-00	1-11/16	2.2	2	200	1.02	Request Quote
9500YS-01750-00	1-3/4	2.26	2	200	1.05	Request Quote
9500YS-01813-00	1-13/16	2.32	2	200	1.09	Request Quote
9500YS-01875-00	1-7/8	2.38	2	200	1.12	Request Quote
9500YS-02000-00	2	2.51	2	200	1.18	Request Quote
9500YS-02125-00	2-1/8	2.63	2	200	1.25	Request Quote
9500YS-02250-00	2-1/4	2.76	2	200	1.31	Request Quote
9500YS-02375-00	2-3/8	2.88	2	200	1.37	Request Quote
9500YS-02500-00	2-1/2	3.01	2	200	1.44	Request Quote
