Novaflex

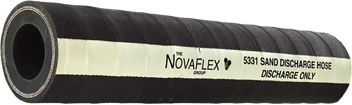

5331 Dredge Sleeves / Sand Discharge Hose

5331 Dredge Sleeves / Sand Discharge Hose

Types:
Material Handling Hose     Sub Type: Material Handling Abrasives and Corrosives hose


Vendor: Novaflex

Application:

A specially compounded abrasive resistant and static conductive tube.
This hose is manufactured to very close O.D. tolerances.

Tube:

Black abrasion resistant synthetic rubber

Reinforcement:

Polyester tire cord

Cover:

Black abrasion and weather resistant synthetic rubber

Temperature:

Range: up to 180°F

Lengths:

20 ft.

Part No ID OD Tube
Gauge
Plies WP
psi
WT
LBS/FT
Request Quote
5331BS-04500-00 4-1/2 5.73 3/8 4 150 5.45 Request Quote
5331BS-06000-00 6 7.25 3/8 4 150 7.51 Request Quote
5331BS-06625-00 6-5/8 8.07 3/8 6 150 9.26 Request Quote
5331BS-08625-00 8-5/8 10.19 3/8 8 150 12.97 Request Quote
5331BS-10750-00 10-3/4 12.5 1/2 8 150 17.83 Request Quote
5331BS-12750-00 12-3/4 14.55 1/2 8 150 22.8 Request Quote
5331BS-14000-00 14 16.04 1/2 12 150 27.21 Request Quote
5331BS-16000-00 16 18.04 1/2 12 150 30.82 Request Quote
