Novaflex

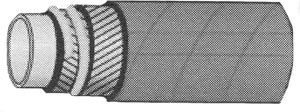

6582-250 Food Suction & Discharge Hose

Types:
Sanitary Food Grade Sub Type: General Food Hose

Vendor: Novaflex

Application:

Used for a variety of food products, where high pressure is required, such as: milk, beer and wine.
This tube compound resists the collection of bacteria.
Very easy to clean.
Odorless and tasteless.
Not for steam service

Tube:

White FDA Butyl

Reinforcement:

Plies of polyester tire cord with helix wire

Cover:

Smooth red weather and abrasion resistant EPDM.

Temperature:

up to 250°F

Lengths:

100 ft.

Part No	ID	OD	Bend Radius	Plies	WP psi	WT LBS/FT	Request Quote
6582WB-01500-20	1-1/2	2.02	6	4	250	1.49	Request Quote
6582WB-02000-20	2	2.52	8	4	250	1.99	Request Quote
6582WB-02500-20	2-1/2	3.19	10	4	250	2.6	Request Quote
6582WB-03000-20	3	3.69	12	4	250	3.08	Request Quote
6582WB-04000-20	4	4.79	16	6	250	4.58	Request Quote

Meets FDA, CFIA, (Canadian Food Inspection Agency) and Grade A Pasteurized Milk Ordinance (PMO) requirements.
Accepted by USDA s Dairy Division. Certified by 3A
