Novaflex

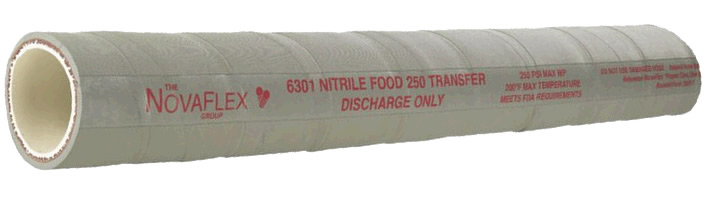

6301 Nitrile Food Discharge Hose

6301 Nitrile Food Discharge   Hose

Types:
Sanitary Food Grade     Sub Type: General Food Hose


Vendor: Novaflex

Application:

Recommended for the food transfer application that demands both flexibility and ruggedness with a clean white FDA grade tube.
The food grade nitrile tube is odorless and tasteless for those oily transfer applications. Excellent for discharge applications.
This ultra smooth microbe resistant tube is built on special stainless steel mandrels for cleanliness.
Not for continuous steam service

Tube:

FDA white nitrile

Reinforcement:

Multiple plies of polyester tire cord

Cover:

Grey PVC nitrile

Temperature:

-40°F to +210°F (Cleaning in place to 248°F)

Lengths:

100ft

Colors:

other color hose covers red, black, white

Part No. ID OD Plies WP
psi
MBR WT
LBS/FT
Request Quote
6301WT-00500-00 1/2 0.97 2 250 n/a 0.31 Request Quote
6301WT-00750-00 3/4 1.21 2 250 n/a 0.41 Request Quote
6301WT-01000-01 1 1.59 4 250 n/a 0.64 Request Quote
6301WT-01500-01 1-1/2 2.09 4 250 n/a 0.93 Request Quote
6301WT-02000-01 2 2.59 4 250 n/a 1.26 Request Quote
6301WT-03000-00 3 3.6 4 250 n/a 1.64 Request Quote
6301WT-03000-01 3 3.72 6 250 n/a 1.91 Request Quote
6301WT-04000-00 4 4.6 4 250 n/a 2.19 Request Quote
6301WT-04000-01 4 4.72 6 250 n/a 2.53 Request Quote
