Novaflex

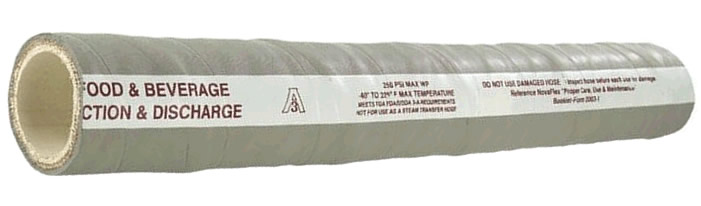

6300 Nitrile Food 150 Suction and Discharge Hose

6300 Nitrile Food 150 Suction and Discharge Hose

Types:
Sanitary Food Grade     Sub Type: General Food Hose


Vendor: Novaflex

Application:

Recommended for the food transfer application that demands both flexibility and ruggedness with a clean white FDA grade tube. The food grade nitrile tube is odorless and tasteless for those oily transfer applications. Excellent for suction and discharge applications. This ultra smooth microbe resistant tube is built on special stainless steel mandrels for cleanliness.
Not for continuous steam service

Tube:

FDA white nitrile

Reinforcement:

Multiple plies of polyester tire cord with helix wire

Cover:

Grey PVC nitrile

Temperature:

-40°F to +210°F (Cleaning In Place to 248°F)

Colors:

other color hose covers red, black, white

Part No ID OD Plies WP
psi
MBR WT
LBS/FT
Request Quote
6300WT-00750-00 3/4 1.25 2 150 4 0.4 Request Quote
6300WT-01000-00 1 1.5 2 150 5 0.5 Request Quote
6300WT-01500-00 1-1/2 2 2 150 6 0.71 Request Quote
6300WT-02000-00 2 2.5 2 150 7 0.95 Request Quote
6300WT-03000-00 3 3.52 2 150 9 1.51 Request Quote
6300WT-04000-00 4 4.52 2 150 12 1.98 Request Quote
