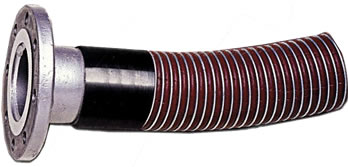

Novaflex
Special Petroleum Service Uni-zene

Special Petroleum Service Uni-zene

Types:
Petroleum Hose     Sub Type: Petroleum Aircraft


Vendor: Novaflex

Application:

Special service petroleum hose is designed to handle modern gasoline additives such as MTBE, ethanol and 100% benzene. Uni-zene hoses are built with an effective combination of polyamide, polyester and polypropylene film and fabrics to meet the demands of today's additives.
Also recommended for all JP aviation fuels.

Uni-zene
  • G- High Tensile Galvanized Carbon Steel Inner Helix
  • G- High Tensile Galvanized Carbon Steel Outer Helix

Cover:

Maroon Cover

Temperature:

-40°F to +250°F

Part No ID OD MAX
WP
PSI
BURST
PRES
PSI
MBR WT
LBS/
FT
MAX
LGT
Request Quote
3UCZEGG-01000-00 1 1.5 200 800 4.1" 0.6 100 Request Quote
3UCZEGG-01500-00 1-1/2 2 200 800 5.1" 0.8 100 Request Quote
3UCZEGG-02000-00 2 2.5 200 800 6.1" 1.6 100 Request Quote
3UCZEGG-03000-00 3 3.5 200 800 8.2" 2.4 100 Request Quote
3UCZEGG-04000-00 4 4.5 200 800 14.0" 3.2 100 Request Quote
3UCZEGG-06000-00 6 7 250 1000 22.0" 7.2 100 Request Quote
3UCZEGG-08000-00 8 9.4 250 1000 30.0" 11 100 Request Quote
