Novaflex

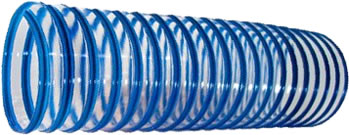

Static Dissipating Urethane Duct

Types:
Ducting

Vendor: Novaflex

Application:

Novaflex TPU-SD (.030" wall gauge)
Static dissipating urethane reinforced with steel wire helix safely reduces static charges. TPU-SD is now manufactured using raw materials which meet the current requirements of the FDA for food contact applications when used in accordance with the requirements and limitations of 21 CFR: 175.105 and 177.2600a.

This specially-formulated, inherently static-dissipating grade of urethane, also maintains the TPU-SD duct’s ability for permanent protection against electrostatic discharge.

• Excellent flexibility
• Maximum abrasion resistance
• Superior tear resistance and high tensile strength
• Clear construction for visual monitoring

Applications

• Plastics processing, dust and shavings
• Woodworking equipment
• Plant debris collection
• Dust collection
• Material handling

Tube:

Static dissipating urethane

Reinforcement:

Steel wire helix

Temperature:

-65° to +200°F

Lengths:

25 & 50 ft

Options:

Larger diameters and metric sizes and heavier wall gauges available.

Size ID (in)	Min in. for 90°Bend	Bend Radius	Friction Loss Straight Run 100’ (in Wg)	Friction Loss 90° 100’ (in Wg)	Positive W. P. (PSIG)	Neg. W.P. (vacuum rating in Hg)	Wgt (per foot)	Crush Tests 1/2 ID (lbs per foot)	Request Quote
2"	9.5"	3.0"	1.72	1.84	22	29	0.44	780	Request Quote
3"	10.0"	3.5"	1.62	1.74	20	29	0.47	660	Request Quote
4"	11.5"	4.0"	1.29	1.42	18	26	0.56	510	Request Quote
5"	13.5"	5.0"	1.19	1.3	18	21	0.7	400	Request Quote
6"	14.5"	5.5"	1.17	1.28	16	16	0.84	350	Request Quote
8"	19.0"	7.0"	0.74	0.75	16	6	1.12	310	Request Quote
10"	21.0"	8.5"	0.71	0.73	14	5	1.24	270	Request Quote
12"	23.0"	9.5"	0.68	0.7	14	4.5	1.37	265	Request Quote
