Parker / Titan

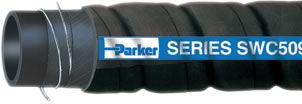

SWC509 Ultravac Oilfield Vacuum Hose

Types:
Petroleum Hose     Sub Type: Petroleum Petro Transfer Hose

Vendor: Parker / Titan

Application:

Ultra-flexible oil field vacuum hose ideal for transferring diluted industrial chemicals, petroleum waste, sludge, slurry, and sediments.
Lightweight corrugated design is easy to lift, drag, and maneuver.
Not recommended for refined petroleum products with over 35% aromatics.

Tube:

Extruded specially compounded Nitrile.

Reinforcement:

Textile with dual wire helix.

Cover:

Corrugated SBR

Temperature:

-40° to +160° F.

Packaging:

ID (in)	OD (in)	Bend Radius (in)	Working Pressure (psi)	Weight (lb/ft)	Request Quote
1	1-1/2	1	250	.48	Request Quote
1-1/2	2-1/16	1-1/2	250	.72	Request Quote
2	2-9/16	2	250	.93	Request Quote
2-1/2	3-1/8	2-1/2	250	1.40	Request Quote
3	3-5/8	3	250	1.66	Request Quote
4	4-5/8	4	150	2.23	Request Quote
6	6-3/4	10	125	4.02	Request Quote
