Parker / Titan

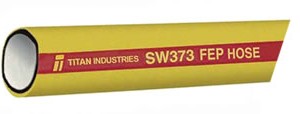

SW373 FEP CHEMICAL SUCTION HOSE

Types:
Chemical Hose     Sub Type: Chemical Suction & Discharge Hose
Suction & Discharge     Sub Type: Chemical Suction & Discharge Hose

Vendor: Parker / Titan

Application:

Designed for sanitary, pharmaceutical, high purity, distillery flex connections, and industrial chemicals with high temperature factors.
Handles 99.5% of all known industrial chemicals.

PTFE is a registered trademark of DuPont / Neoflon® is a registered trademark of Daikin.

Tube:

Extruded white FDA FEP (PTFE or Neoflon).

Reinforcement:

Multiple plies of polyester with helix wire.

Cover:

Yellow EPDM.

Temperature:

-40° to +300° F.

Packaging:

ID (in)	OD (in)	Bend Radius	Working Pressure (psi)	Weight (lbs/ft)	Request Quote
1/2	31/32	7	500	0.37	Request Quote
3/4	1-1/4	8	500	0.55	Request Quote
1	1-17/32	9	400	0.69	Request Quote
1-1/4	1-3/4	11	375	0.75	Request Quote
1-1/2	2-1/8	12	350	1.11	Request Quote
2	2-11/16	16	300	1.57	Request Quote
3	3-7/8	30	200	2.86	Request Quote
4	5	42	150	4.28	Request Quote
6	7-1/8	48	100	7.66	Request Quote
