Parker / Titan

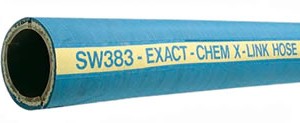

SW383 EXACT-CHEM MODIFIED CROSS-LINKED HOSE

Types:
Chemical Hose     Sub Type: Chemical Suction & Discharge Hose
Suction & Discharge     Sub Type: Chemical Suction & Discharge Hose

Vendor: Parker / Titan

Application:

Designed for the transfer of corrosive chemicals, acids, fuels, and petro-chemical products.
Specially formulated tube and lightweight construction provides superior flexibility for handling ease.
High grade chemical, ozone, and abrasion resistant cover.
Dual helix construction allows full vacuum capabilities.

Tube:

Extruded Modified Cross-Linked Polyethylene.

Reinforcement:

Textile with dual wire helix.

Cover:

EPDM.

Temperature:

-40° to +225° F.

Packaging:

ID (in)	OD (in)	Bend Radius	Weight (lbs/ft)	Working Pressure (psi)	Request Quote
1-1/4	1-3/4	8	.64	200	Request Quote
1-1/2	2	9	.76	200	Request Quote
2	2-17/32	12	1.08	200	Request Quote
3	3-21/32	18	2.05	150	Request Quote
4	4-23/32	28	2.97	150	Request Quote
6	6-13/16	42	6.24	150	Request Quote
1	1-1/2	6	.55	200	Request Quote
