Parker / Titan

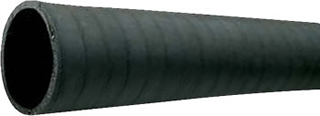

SW306 Light Duty Fire Engine Suction Hose
Types:
Fire Protection
Vendor: Parker / Titan
Application:
Ultra flexible, light duty fire engine suction and discharge hose. Designed for full vacuum capability and handling ease. Excellent abrasion and ozone resistance.Tube:
SBR
Reinforcement:
Multiple plies of polyester yarn with wire helix.
Cover:
SBR
Temperature:
-40° to +180° F.
| ID (in) | OD (in) | Bend Radius | Working Pressure (psi) | Weight (lb/ft) | Request Quote |
| 1-1/2 | 1-15/16 | 8 | 225 | .58 | Request Quote |
| 2 | 2-9/16 | 10 | 200 | 1.09 | Request Quote |
| 2-1/2 | 3-1/16 | 13 | 125 | 1.42 | Request Quote |
| 3 | 3-9/16 | 15 | 125 | 1.64 | Request Quote |
| 3-1/2 | 4-1/16 | 18 | 125 | 2.05 | Request Quote |
| 4 | 4-5/8 | 20 | 125 | 2.57 | Request Quote |
| 4-1/2 | 5-1/4 | 24 | 125 | 3.49 | Request Quote |
 |
