Continental ContiTech
Spiraflex Blue Extra Light Duty

Spiraflex Blue Extra Light Duty

Types:
Water Hose


Vendor: Continental ContiTech

Application:

For light duty water discharge applications in mining, construction, industry, agricultural and marine service.

Tube:

Blue PVC compound

Reinforcement:

Synthetic fabric

Cover:

Blue PVC compound

Temperature:

-10° to 150°F (-23°C to 66°C)

Packaging:

300’, continuous one piece, coiled and poly-wrapped

Branding:

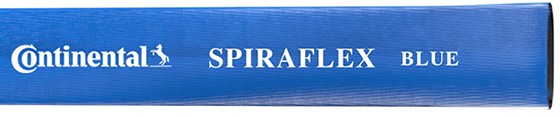

Continental ContiTech® Spiraflex® Blue 2" (50.8 mm) 80 psi WP (.55 Mpa)

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Order Codes:

537-564

ID Nom. OD Max. WP Weight Request a Quote
in. mm. in. mm. psi Mpa lb./ft. kg./m.
1 1/2 38.1 1.67 42.4 90 0.62 0.18 0.27 Request Quote
2 50.8 2.21 56.1 80 0.55 0.24 0.37 Request Quote
2 1/2 63.5 2.68 68.1 55 0.38 0.35 0.52 Request Quote
3 76.2 3.20 81.3 55 0.38 0.38 0.56 Request Quote
4 101.6 4.26 108.2 50 0.34 0.63 0.94 Request Quote
6 152.4 6.26 159.0 35 0.24 1.14 1.70 Request Quote
8 203.2 8.32 211.3 35 0.24 1.30 1.93 Request Quote
Hose design ratio (burst pressure) 3:1.

Note: Working pressures are rated at 72°F.
