Continental ContiTech

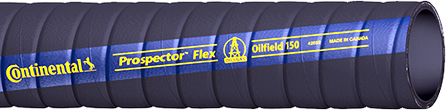

Prospector Flex Oilfield Hose

Types:
Oilfield

Vendor: Continental ContiTech

Application:

Prospector™ Flex Oilfield is for use in the tank truck service industry including oilfield applications, handling crude oil, drilling mud and diesel fuels. It can be used for in-plant transfer of diluted industrial chemical and petroleum waste, sludge and sediments. It is not recommended for refined petroleum products or concentrated industrial chemicals. Do not use with gasoline and other refined products where the aromatic content exceeds 35%.

Tube:

Black Nitrile/SBR

Reinforcement:

Synthetic fabric plies with wire helix

Cover:

Black SBR synthetic rubber, corrugated

Temperature:

-25° F to 180° F (-36° C to 82°C)

Packaging:

Coiled and polywrapped

Branding:

Continental ContiTech Prospector™ Flex Oilfield 150 psi

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Order Codes:

543-456

ID		Nom. OD		Max. WP		Bend Radius		Vacuum HG		Weight		Request a Quote
in.	mm	in.	mm	psi	MPa	in.	mm	in.	mm	lb./ft.	kg/m
1	25.4	1.40	35.6	150	1.03	2.0	51	29	737	0.52	0.77	Request Quote
1e	31.8	1.65	41.9	150	1.03	2.5	64	29	737	0.63	0.94	Request Quote
1f	38.1	1.94	49.2	150	1.03	3.0	76	29	737	0.78	1.16	Request Quote
2	50.8	2.44	61.9	150	1.03	4.0	102	29	737	1.01	1.50	Request Quote
2f	63.5	2.99	76.0	150	1.03	5.0	127	29	737	1.44	2.14	Request Quote
3	76.2	3.52	89.4	150	1.03	6.0	152	29	737	1.85	2.75	Request Quote
4	101.6	4.52	114.9	150	1.03	9.0	229	29	737	2.56	3.81	Request Quote
6	152.4	6.59	167.4	150	1.03	15.0	381	29	737	4.39	6.53	Request Quote
