Continental ContiTech

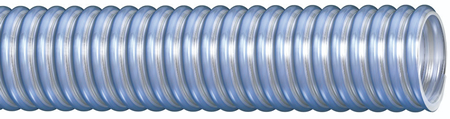

Spirathane PT Hose

Types:
Material Handling Hose

Vendor: Continental ContiTech

Application:

For the transfer of a variety of dry, bulk and abrasive materials. It is used in applications where static electrical buildup is common. For powders, plastic pellets and granular materials.

Tube:

Polyurethane conforms to FDA standards.

Reinforcement:

High-density, rigid Pliovic® PVC helix with static wire placed between tube and cover.

Cover:

High molecular weight, clear PVC, corrugated for flexibility.

Temperature:

0°F to 158°F (-18°C to 70°C)

Packaging:

100’ lengths, coiled and polywrapped

Branding:

Not Branded

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Order Codes:

586-489

ID		Nom. OD		Max. WP		Bend Radius		Vacuum HG		Weight		Request Quote
in.	mm	in.	mm	psi	MPa	in.	mm	in.	mm	lbs./ft.	kg/m
1-1/2	38.1	1.82	46.2	45	0.31	4	102	29	737	0.31	0.46	Request Quote
1-3/4	44.5	2.15	54.6	45	0.31	5	127	29	737	0.38	0.57	Request Quote
2	50.8	2.38	60.5	30	0.21	6	152	29	737	0.52	0.77	Request Quote
2-1/4	57.2	2.77	70.4	35	0.24	7	165	29	737	0.63	0.94	Request Quote
2-1/2	63.5	3.03	77.0	30	0.21	7	178	29	737	0.69	1.03	Request Quote
3	76.2	3.63	92.2	30	0.21	8	203	29	737	1.15	1.71	Request Quote
4	101.6	4.76	120.9	27	0.19	14	356	29	737	1.63	2.43	Request Quote
5	127.0	5.83	148.1	27	0.19	20	508	29	737	2.13	3.17	Request Quote
