Continental ContiTech

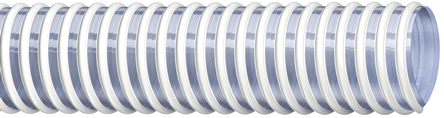

Spirathane LD Hose

Types:
Material Handling Hose

Vendor: Continental ContiTech

Application:

For dry pneumatic conveying of solid fines where abrasion is present and service conditions are moderate. Excellent for low-pressure blowing applications.

Tube:

Clear Polyurethane, ARPM Class B (Medium Oil Resistance)

Reinforcement:

High-density rigid white Pliovic® helix

Temperature:

0°F to 158°F (-18°C to 70°C)

Packaging:

1-1/2"–6" 100’ lengths, coiled and polywrapped
8"-10" 20’ lengths, polywrapped with corrugated protection

Branding:

Not Branded

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Order Codes:

586-406

ID		Nom. OD		Max. WP		Bend Radius		Vacuum HG		Weight		Request Quote
in.	mm	in.	mm	psi	MPa	in.	mm	in.	mm	lbs./ft.	kg/m
1-1/2	38.1	1.84	46.7	30	0.21	2	51	22	559	0.25	0.37	Request Quote
2	50.8	2.35	59.7	25	0.17	3	71	21	533	0.34	0.51	Request Quote
2-1/2	63.5	2.89	73.4	20	0.14	4	89	19	483	0.44	0.65	Request Quote
3	76.2	3.45	87.6	20	0.14	4	102	18	457	0.60	0.89	Request Quote
4	101.6	4.53	115.1	15	0.10	7	178	13	330	0.88	1.31	Request Quote
5	127.0	5.56	141.2	10	0.07	8	203	10	254	1.09	1.62	Request Quote
6	152.4	6.57	166.9	10	0.07	12	305	7	178	1.53	2.28	Request Quote
8	203.2	8.59	218.2	6	0.04	23	584	5	127	1.73	2.57	Request Quote
