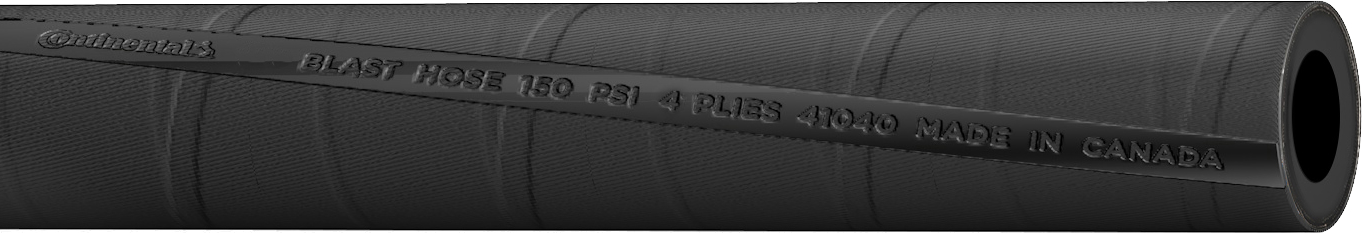

Continental ContiTech
Plicord Blast

Types:
Material Handling Hose

Vendor: Continental ContiTech

Application:

Heavy-duty hose for steel shot or sand blasting in cleaning or finishing metal, stone, glass or other surfaces.

Tube:

Chemituf® synthetic rubber (static dissipating/static conductive).

Reinforcement:

Spiral-plied synthetic fabric

Cover:

2 ply: Black SBR (wrapped impression)
4 ply: Green SBR (wrapped impression)

Temperature:

-25°F to 180°F (-32°C to 82°C)

Packaging:

50’ lengths, coiled and polywrapped

Branding:

Example: Continental ContiTech Plicord® Blast 150 psi WP

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Order Codes:

(2-Ply) 549-020, Survivor® 549-805
(4-Ply) 549-027

2 PLY
ID		Nom. OD		Max. WP		Weight		Request Quote Black	Request Quote Survivor
in.	mm	in.	mm	psi	MPa	lbs./ft.	kg/m
1/2	12.7	1.13	28.7	150	1.03	0.41	0.61	Request Quote	Request Quote
3/4	19.1	1.48	37.6	150	1.03	0.68	1.01	Request Quote	Request Quote
1	25.4	1.88	47.8	150	1.03	1.05	1.56	Request Quote	Request Quote
1-1/4	31.8	2.16	54.9	150	1.03	1.26	1.88	Request Quote	Request Quote
1-1/2	38.1	2.38	60.5	150	1.03	1.42	2.11	Request Quote	Request Quote
2	50.8	2.86	72.6	150	1.03	1.70	2.53	Request Quote	Request Quote

4 PLY
ID		Nom. OD		Max. WP		Weight		Request Quote
in.	mm	in.	mm	psi	MPa	lbs./ft.	kg/m
1/2	12.7	1.14	26.7	150	1.03	0.44	0.61	Request Quote
3/4	19.1	1.50	38.1	150	1.03	0.71	1.06	Request Quote
1	25.4	1.88	47.8	150	1.03	1.08	1.61	Request Quote
1-1/4	31.8	2.16	54.9	150	1.03	1.31	1.95	Request Quote
1-1/2	38.1	2.38	60.5	150	1.03	1.45	2.16	Request Quote
2	50.8	2.88	73.2	150	1.03	1.75	2.60	Request Quote
