Continental ContiTech

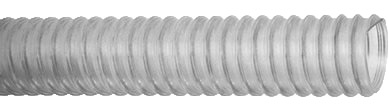

Nutriflex Static Wire Hose

Nutriflex Static Wire Hose

Types:
Material Handling Hose     Sub Type: Material Handling Abrasives and Corrosives hose
Sanitary Food Grade     Sub Type: General Food Hose


Vendor: Continental ContiTech

Application:

Nutriflex™ Static Wire is for both dry food transfer and liquid transfer. It is used for handling almost every type of dry bulk food material or liquid in gravity flow and vacuum service. Nutriflex™ Static Wire conforms to USDA meat and poultry, 3-A sanitary, and FDA standards, and it is recommended for the transmission of powder pellets or granular materials.

Tube:

Clear Pliovic® (FDA, 3-A, USDA compliant), NSF-61

Reinforcement:

Clear, high-density Pliovic helix

Cover:

Clear Pliovic (corrugated construction) static wire placed between the tube and cover

Temperature:

-15°F to 158°F (-26°C to 70°C)

Packaging:

100’ length, coiled, polywrapped

Branding:

Not branded

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Order Codes:

586-472

Colors:

Clear

ID Nom. OD Max. WP Bend Radius Vacuum HG Weight Request Quote
in. mm in. mm psi MPa in. mm in. mm lbs./ft. kg/m Clear
1-1/4 31.8 1.56 39.6 50 0.34 3 76 29 737 0.29 0.43 Request Quote
1-1/2 38.1 1.84 46.8 50 0.34 4 102 29 737 0.37 0.55 Request Quote
1-3/4 44.5 2.09 53.1 45 0.31 4 102 29 737 0.42 0.63 Request Quote
2 50.8 2.43 61.7 40 0.28 4 102 29 737 0.56 0.83 Request Quote
2-1/2 63.5 3.00 76.2 35 0.24 5 127 29 737 1.00 1.49 Request Quote
3 76.2 3.58 90.9 35 0.24 7 178 29 737 1.12 1.67 Request Quote
4 101.6 4.65 118.1 35 0.24 11 279 29 737 1.53 2.28 Request Quote
5 127.0 5.75 146.1 35 0.24 22 559 29 737 2.13 3.17 Request Quote
6 152.4 6.87 174.5 25 0.17 30 762 28 711 2.62 3.90 Request Quote

Hose design ratio (burst pressure) 3:1.
