Continental ContiTech

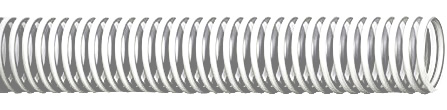

Nutriflo Suction and Discharge Hose

Application:

Nutriflo® S&D is for both dry food transfer and liquid transfer. It is for handling almost every type of dry bulk food material or liquid in gravity flow and vacuum service. Nutriflo® S&D conforms to USDA meat and poultry, 3-A sanitary, and FDA standards, and it is used for the transmission of raw and pasteurized milk and other highwater content dairy items.

Tube:

Clear Pliovic® (FDA, 3-A, USDA compliant), NSF-61

Reinforcement:

White or Clear high-density Pliovic® helix

Cover:

Clear Pliovic®

Temperature:

-15°F to 158°F (-26°C to 70°C)

Packaging:

100’ length, coiled, polywrapped

Branding:

Not branded

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Order Codes:

586-416 (white)
586-421 (clear)

ID		Nom. OD		Max. WP		Bend Radius		Vacuum HG		Weight		Request Quote	Request Quote
in.	mm	in.	mm	psi	MPa	in.	mm	in.	mm	lbs./ft.	kg/m	White	Clear
3/4	19.1	0.99	25.2	120	0.83	3	83	29	737	0.18	0.27	Request Quote	Request Quote
1	25.4	1.24	31.5	106	0.73	5	114	29	737	0.26	0.39	Request Quote	Request Quote
1-1/4	31.8	1.55	39.4	99	0.68	5	127	29	737	0.36	0.54	Request Quote	Request Quote
1-1/2	38.1	1.78	45.2	89	0.61	6	152	29	737	0.43	0.64	Request Quote	Request Quote
2	50.8	2.37	60.2	79	0.54	8	203	29	737	0.67	1	Request Quote	Request Quote
2-1/2	63.5	2.89	73.4	65	0.45	10	254	29	737	0.89	1.32	Request Quote	Request Quote
3	76.2	3.48	88.4	65	0.45	12	305	29	737	1.15	1.71	Request Quote	Request Quote
4	101.2	4.5	114.3	55	0.38	16	406	29	737	1.65	2.46	Request Quote	Request Quote
6	152.4	6.63	168.4	47	0.32	36	914	29	737	3.39	5.04	Request Quote	Request Quote
