Uniroyal
Flour Handling Hose

Types:
Sanitary Food Grade     Sub Type: General Food Hose

Vendor: Uniroyal

Application:

For loading and unloading dry materials such as flour and grains, especially coarser types such as Semolina flour and grits. Hinge-action corrugations for maximum flexibility.

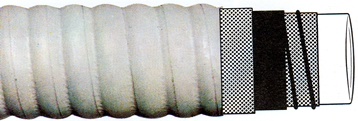

Tube:

Heavy gauge, abrasion resistant white natural rubber; FDA "White List".

Reinforcement:

Cotton fiber plies with helical steel wire.

Cover:

Gray, corrugated neoprene rubber; resists oil, abrasion and weather.

Couplings:

Quick-acting type; bronze, aluminum, stainless steel.

Lengths:

50-foot mandrel-made.

I.D. (in.)	O.D. (in.)	Plies	Pressure (psi)	Lbs per 100 ft	Request a Quote
2	2-1/2	2	20	142	Request Quote
3	3-17/32	2	20	189	Request Quote
4	4-17/32	2	20	246	Request Quote
4-1/2	5	2	20	285	Request Quote
5	5-17/32	2	20	321	Request Quote
6	6-17/32	2	20	383	Request Quote
