Uniroyal

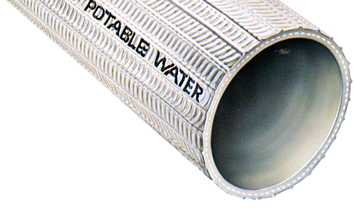

Softwall Potable Water Hose

Types:
Water Hose     Sub Type: Water Suction & Discharge Hose

Vendor: Uniroyal

Application:

A white, lightweight, flexible softwall hose designed for potable water and non-oil-based dry and wet food grade substances. The integral construction provides a non-toxic interior as well as exterior. Excellent for use with potable water systems such as airline water cabinets, rail passenger car water replenishment, ocean vessel potable water supply and offshore rig fresh water supply. Ideally suited for temporary water supply lines during road construction. Suitable as a beverage hose for such as bulk transfer of fruit juices and many other applications in the food processing industry.

Features:

Non-toxic FDA White Listed, tube and cover imparts no taste, odor or discoloration to the conveyed fluids. Can be used with dry, flowable foodstuffs where static electricity buildup is not a problem. Easily cleaned with hot water and mild detergents. Operating temperatures - 20° to 180°F (- 29° to 82°C). Abrasion and scuff-resistant non-marking cover, ribbed for reduced drag and sure handling. It is reliable or rackable for compact storage.

Tube:

High tensile synthetic fiber

Cover:

Embedded white cover

Temperature:

-20° to 180°F

Couplings:

Combination nipple, long and short shank and quick acting couplings with appropriate bend-type clamps. Two or three serrations recommended on shanks. Coupling material must be compatible with fluids conveyed.

Colors:

White

Nominal inside diameter		Nominal outside diameter		Maximum working pressure		Approx. weight w/o fittings		Request a Quote
(in.)	(mm)	(in.)	(mm)	(psi)	(MPa)	(lbs/ft)	(kg/m)
1	25.4	1-7/32	30.9	200	1.38	.16	.238	Request Quote
1-1/4	31.8	1-1/2	38.1	200	1.38	.20	.298	Request Quote
1-1/2	38.1	1-11/16	42.8	175	1.21	.22	.327	Request Quote
2	50.8	2-1/4	57.2	150	1.03	.32	.476	Request Quote
2-1/2	63.5	2-3/4	69.9	150	1.03	.50	.744	Request Quote
3	76.2	3-5/`16	84.1	150	1.03	.60	.893	Request Quote
4	102	4-1/4	108	125	.86	.84	1.250	Request Quote
