Uniroyal

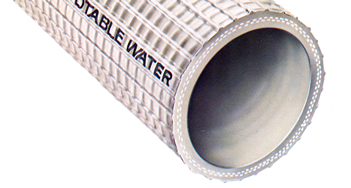

Hardwall Potable Water Hose

Types:
Water Hose     Sub Type: Water Suction & Discharge Hose

Vendor: Uniroyal

Application:

A white, flexible hardwall suction and discharge hose suitable for potable water and non-oil-based dry and wet food grade substances. Uses range from food processing equipment, water replenishment service in trucks, ships, trains and planes, to the bulk transfer of dry or liquid flowable ladings for human consumption.

Features:

Non-toxic FDA White Listed, tube and cover imparts no taste, odor or discoloration to conveyed fluids. High strength to withstand the vibration and pounding when used to convey dry foodstuffs where static electricity buildup is not a problem. Easily cleaned with hot water and mild detergents. Crush and kink-resistant. Retains flexibility and vacuum characteristics at temperatures from - 20° to 180°F ( - 29° to 82°C). Abrasion and scuff-resistant white cover, ribbed for sure grip and reduced drag.

Tube:

High tensile polyester

Reinforcement:

Embedded helically wound wire reinforcement

Cover:

Embedded white cover

Temperature:

-20° to 180°F

Couplings:

Combination nipple, long and short shank and quick acting couplings with appropriate bend-type clamps. Two or three serrations recommended on shanks. Coupling material must be compatible with fluids conveyed.

Colors:

White

Nominal inside diameter		Nominal outside diameter		Maximum working pressure		Approx. weight w/o fittings		Minimum bend radius		Request a Quote
(in.)	(mm)	(in.)	(mm)	(psi)	(MPa)	(lbs/ft)	(kg/m)	(in.)	(mm)
1-1/2	38.1	2	50.8	300	2.07	.80	1.191	6	152	Request Quote
2	50.8	2-1/2	63.5	300	2.07	1.10	1.652	8	203	Request Quote
2-1/2	63.5	3	76.2	300	2.07	1.34	1.994	10	254	Request Quote
3	76.2	3-9/16	90.5	250	1.72	2.00	2.992	12	305	Request Quote
4	102	4-5/8	117.5	200	1.38	2.78	4.167	16	406	Request Quote
