Uniroyal

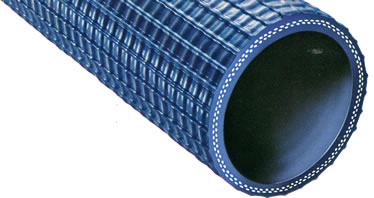

Heavy Duty Multi-Purpose Suction and Discharge Hose

Heavy Duty Multi-Purpose Suction and Discharge Hose

Types:
Mining Hose
Water Hose     Sub Type: Water Discharge Hose


Vendor: Uniroyal

Application:

A flexible and lightweight hardwall multi-purpose hose for heavy duty suction and discharge service in agriculture, construction and industrial applications. Excellent for use in foundries, municipal water and sewer plants, refineries, chemical plants, dairies, mines, quarries, paper mills, oil fields and road building. Resistant to mild acids and alkalis and can also be used with some chemicals. See Chemical Resistance Table in this catalog for use with specific chemicals.

Features:

  • Crush and kink-resistant.
  • Retains flexibility and vacuum characteristics at temperatures from - 20° to 180°F ( - 29° to 82°C).
  • Abrasion and scuff-resistant blue Ozex cover ribbed for sure grip and reduced drag.

Tube:

100% polyester

Reinforcement:

Embedded helically wound wire reinforcement

Cover:

Ribbed blue Ozex cover

Temperature:

-20° to 180°F

Couplings:

Combination nipple, expansion ring, long and short shank and quick disconnect couplings with appropriate clamps or bands. Two or three serrations on shanks recommended. Long shank couplings for medium pressures. Expansion ring couplings for high pressures.

Lengths:

Standard package for 1-1/4 and 1-1/2 in. ID is 250 feet,two pieces per package, no piece less than 50 feet Standard package for 2 to 4 in. ID is two 50-foot lengths or two 60-foot lengths. Longer lengths available on special order.

Nominal inside diameter Nominal outside diameter Maximum working pressure Approx. weight w/o fittings Minimum bend radius Request a Quote
(in.) (mm) (in.) (mm) (psi) (MPa) (lbs/ft) (kg/m) (in.) (mm)
1-1/4 31.8 1-3/4 44.5 300 2.07 .63 .937 5 127 Request Quote
1-1/2 38.1 1-15/16 49.2 300 2.07 .81 1.206 6 152 Request Quote
2 50.8 2-15/32 62.7 300 2.07 1.09 1.622 8 203 Request Quote
2-1/2 63.5 3 76.2 300 2.07 1.32 1.965 10 254 Request Quote
3 76.2 3-1/2 88.9 250 1.72 1.94 2.887 12 305 Request Quote
4 102 4-9/16 115.9 200 1.38 2.72 4.048 16 406 Request Quote
